1457694 - Phoenix Contact

Description: SACC-CI-M12FS-12CON-TOR 32 - Contact carrier, 12-position, Socket, straight, M12, A-coding, THR solder connection, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1457694 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1457694 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

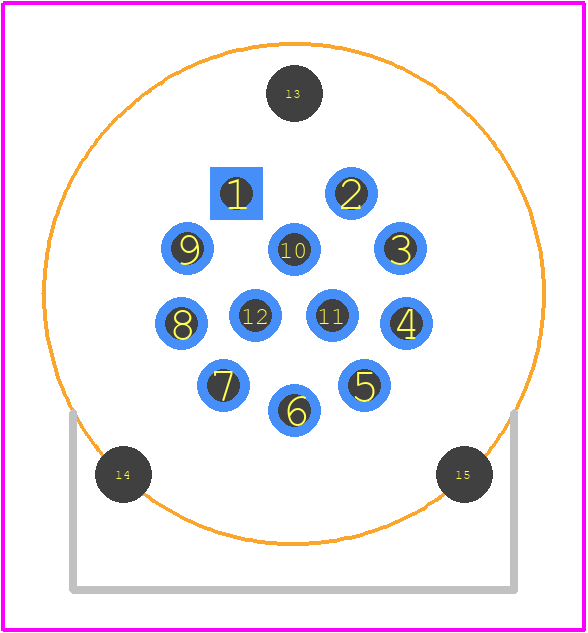

1457694 - Phoenix Contact PCB footprint - Other - Other - 1457694
click to zoom
3D Models
1457694 - Phoenix Contact - 3D model - Other - 1457694
click to zoom

1457694 Details

  • Manufacturer Part Number:

    1457694

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    IEC-61076-2-101, RATED VOLTAGE: 30V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    IEC

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

1457694 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the Phoenix Contact torque guide for specific recommendations.
  • Yes, the 1457694 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to prevent loosening during operation.
  • The 1457694 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and protection from direct sunlight, water, and other environmental factors.
  • While the datasheet specifies a particular wire gauge, it's possible to use a different gauge with some limitations. Consult Phoenix Contact's wire gauge compatibility chart or contact their technical support for guidance on specific applications.
  • To ensure proper EMI shielding, make sure to use the connector's shielding capabilities in conjunction with a shielded cable and proper grounding. Consult Phoenix Contact's EMI shielding guidelines for more information.
