1457953 - Phoenix Contact

Description: SACC-DSI-MS-5CON-L180/SH BU - Device connector rear mounting, 5-position, Pin, straight, M12-SPEEDCON, A-coding, Wave soldering, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1457953 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1457953 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

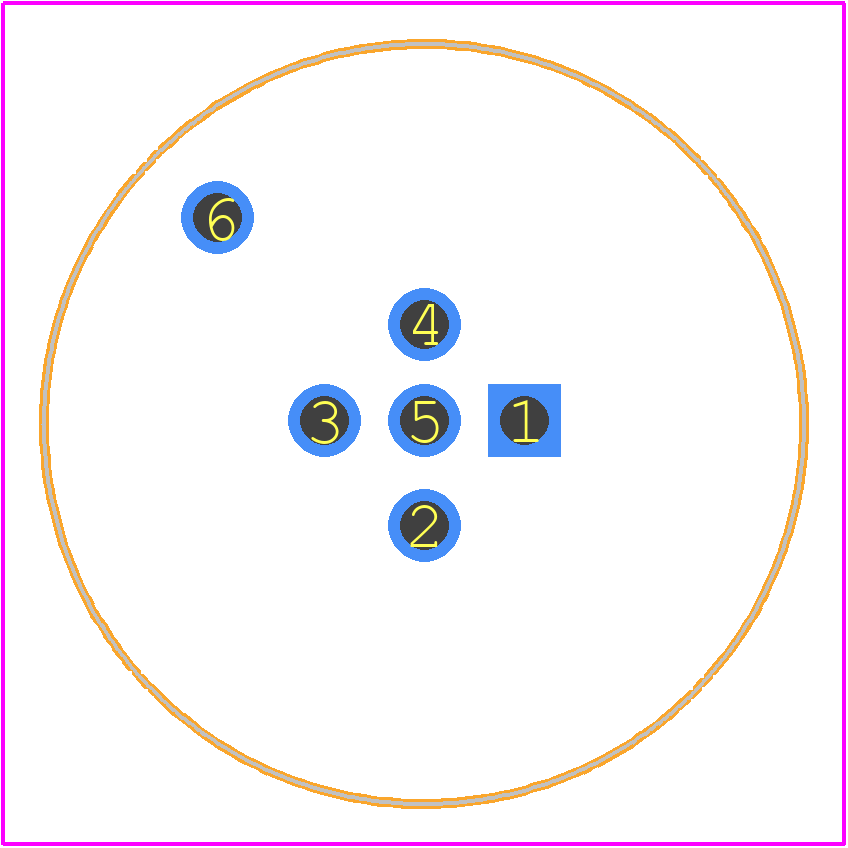

1457953 - Phoenix Contact PCB footprint - Other - Other - 1456501
click to zoom
3D Models
1457953 - Phoenix Contact - 3D model - Other - 1456501
click to zoom

1457953 Details

  • Manufacturer Part Number:

    1457953

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    9

  • Additional Feature:

    IEC-61076-2-101, RATED VOLTAGE: 60V

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE66

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CUL;EAC;UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

1457953 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1457953 connector is designed to withstand high vibrations and is suitable for use in applications with intense mechanical stress, such as in industrial automation or transportation systems.
  • The 1457953 connector has a IP67 rating, making it suitable for outdoor use and exposure to harsh environmental conditions, including dust, water, and extreme temperatures.
  • Yes, the 1457953 connector is compatible with aluminum or copper-clad aluminum wires, but it's essential to follow the recommended wire preparation and termination procedures to ensure reliable connections.
  • The 1457953 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including those with extreme temperature fluctuations.
