146175-0001 - Molex

Description: Antennas 2.4/5GHz SMTOnGround MID Chip Antenna

Download 146175-0001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

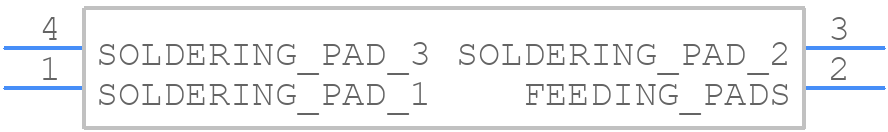

146175-0001 - Molex - PCB symbol
click to zoom
PCB Footprints
146175-0001 - Molex PCB footprint - Other - Other - 146175-0001-4
click to zoom
3D Models
146175-0001 - Molex - 3D model - Other - 146175-0001-4
click to zoom

146175-0001 Details

  • Manufacturer Part Number:

    146175-0001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8517.71.00.00

  • Date Of Intro:

    2018-11-23

  • Manufacturer:

    Molex

  • YTEOL:

    6

  • Additional Feature:

    IT CAN ALSO OPERATE AT 5150 TO 5850 MHZ

  • Application:

    WIRELESS/ZIGBEE

  • Construction:

    COMPONENT

  • Gain:

    3 dB

  • Omnidirectional:

    YES

  • Operating Frequency-Max:

    2483.5 MHz

  • Operating Frequency-Min:

    2400 MHz

  • Polarization:

    LINEAR

  • RF/Microwave Device Type:

    ANTENNA-OTHER
