1468373C footprint, schematic symbol and 3D model by Murata Electronics

Symbol

click to zoom

PCB Footprints

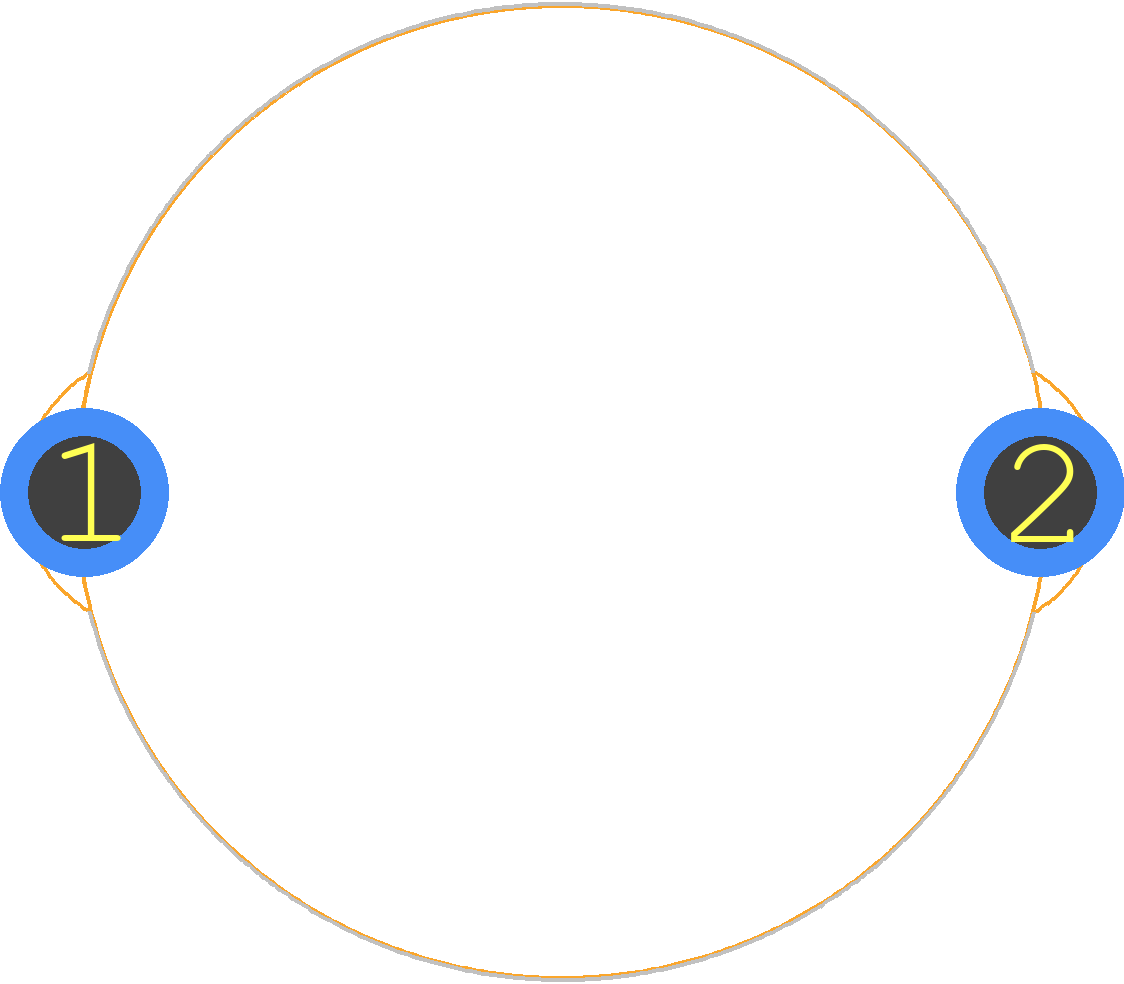

1468373C - Murata Electronics PCB footprint - Other - Other - 1468373C

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1468373C
Part Number 1468373C
Manufacturer Murata Electronics
Pin Count 2
Part Category Inductor
Package Category Other
Footprint Name Other - 1468373C
Released Date Aug 10, 2018
Last Modified Date Jan 3, 2025 3:41 PM UTC
Pinout / Pin List Click Here (Member Only)

1468373C Details

Manufacturer Part Number:
1468373C
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
RADIAL LEADED
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Factory Lead Time:
8 Weeks
Manufacturer:
Murata Manufacturing Co Ltd
YTEOL:
7
Construction:
Cylindrical
DC Resistance:
0.025 Ω
Inductance-Nom (L):
68 µH
Inductor Application:
POWER INDUCTOR
Inductor Type:
GENERAL PURPOSE INDUCTOR
JESD-609 Code:
e3
Lead Diameter:
1.3 mm
Lead Length:
10 mm
Lead Spacing:
23.9 mm
Number of Functions:
1
Number of Terminals:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Height:
18.5 mm
Package Length:
27 mm
Package Style:
Radial
Package Width:
24.4 mm
Packing Method:
Bulk
Rated Current-Max:
7.3 A
Self Resonance Frequency:
5.3 MHz
Shape/Size Description:
CYLINDRICAL PACKAGE
Shielded:
NO
Surface Mount:
NO
Terminal Finish:
Pure Tin (Sn)
Terminal Placement:
RADIAL
Terminal Shape:
WIRE
Test Frequency:
0.001 MHz
Tolerance:
15%

1468373C Frequently Asked Questions (FAQs)

Murata recommends a land pattern with a pad size of 2.5mm x 1.25mm, and a spacing of 1.5mm between pads. Refer to the Murata Land Pattern Guidelines document for more information.
The 1468373C is rated for operation up to 125°C, but it's recommended to derate the component's performance at temperatures above 85°C. Consult the datasheet and Murata's reliability handbook for more information on temperature derating.
Handle the component by the edges, avoid touching the pads, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage. Refer to Murata's Handling and Storage Guidelines document for more information.
Murata recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a cooling rate of 4°C/s. Consult the datasheet and Murata's Soldering Guidelines document for more information.
The 1468373C is not hermetically sealed, so it's not recommended for use in humid or moist environments. If exposure to moisture is unavoidable, consider using a conformal coating or potting compound to protect the component.
