1468422C footprint, schematic symbol and 3D model by Murata Electronics

Symbol

click to zoom

PCB Footprints

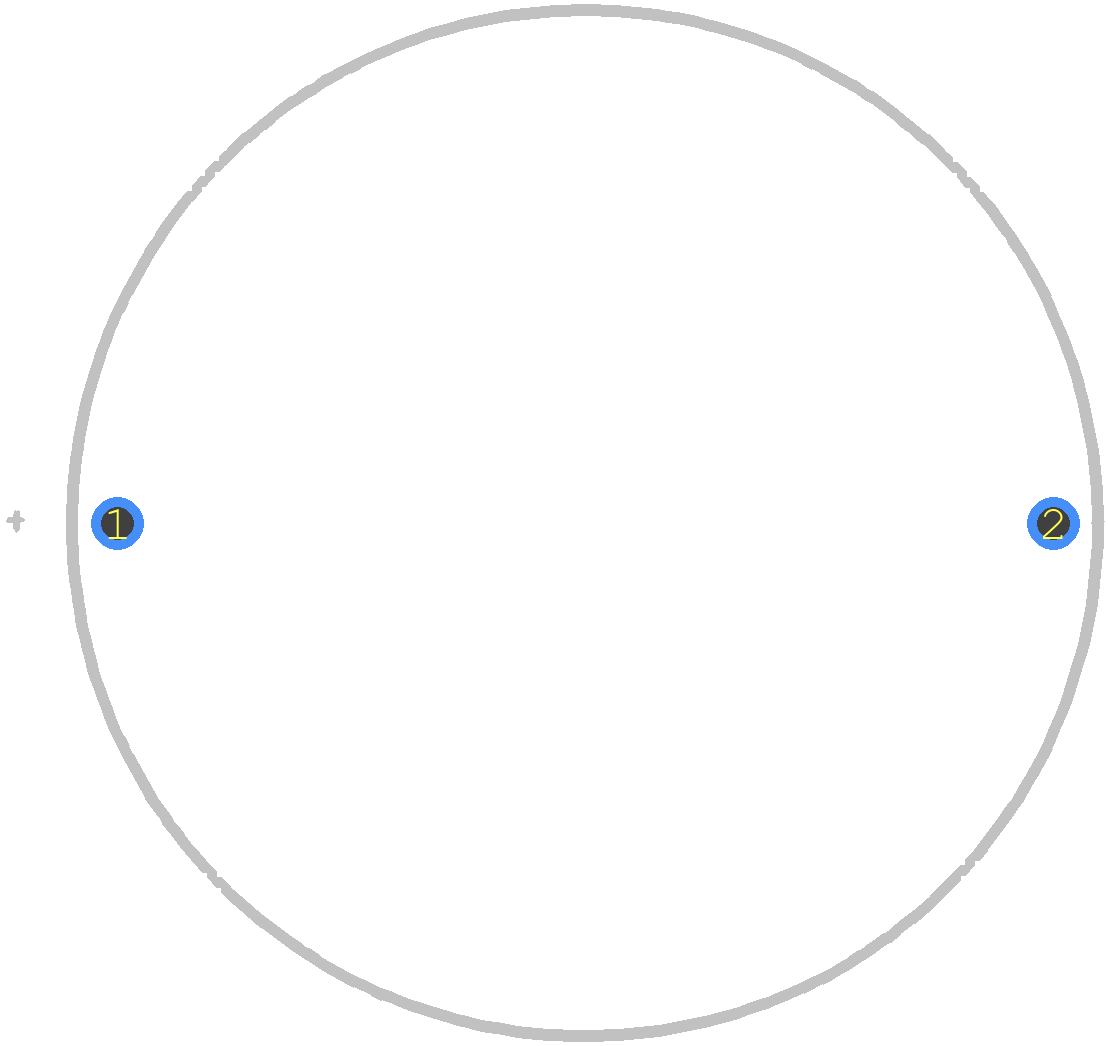

1468422C - Murata Electronics PCB footprint - Other - Other - 1468422C

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1468422C
Part Number 1468422C
Manufacturer Murata Electronics
Pin Count 2
Part Category Inductor
Package Category Other
Footprint Name Other - 1468422C
Released Date May 22, 2017
Last Modified Date Jan 3, 2025 3:41 PM UTC
Pinout / Pin List Click Here (Member Only)

1468422C Details

Manufacturer Part Number:
1468422C
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
RADIAL LEADED
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Factory Lead Time:
8 Weeks
Manufacturer:
Murata Manufacturing Co Ltd
YTEOL:
7
Construction:
Bobbin
DC Resistance:
0.226 Ω
Inductance-Nom (L):
680 µH
Inductor Type:
GENERAL PURPOSE INDUCTOR
JESD-609 Code:
e3
Number of Functions:
1
Number of Terminals:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Diameter:
24.4 mm
Package Height:
18.5 mm
Package Length:
25.9 mm
Package Style:
Radial
Package Width:
24.4 mm
Packing Method:
Bulk
Rated Current-Max:
2.2 A
Shape/Size Description:
CYLINDRICAL PACKAGE
Shielded:
NO
Surface Mount:
NO
Terminal Finish:
Pure Tin (Sn)
Terminal Placement:
RADIAL
Terminal Shape:
WIRE
Tolerance:
10%

1468422C Frequently Asked Questions (FAQs)

The recommended land pattern for the 1468422C can be found in Murata's application notes or by contacting their technical support team. A general guideline is to follow the IPC-7351 standard for QFN packages.
The thermal pad on the 1468422C should be connected to a solid ground plane to ensure proper heat dissipation. A thermal via or a thermal pad connection to the ground plane is recommended.
The maximum operating temperature range for the 1468422C is -40°C to 125°C, as specified in the datasheet. However, it's essential to consider the specific application and environmental conditions to ensure reliable operation.
The 1468422C is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult with Murata's technical support team or consider additional mechanical reinforcement, such as potting or conformal coating.
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a soldering iron with a temperature range of 220°C to 250°C, and apply a small amount of solder paste to the pads.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

1468422C Overview

Use the download button to access the 1468422C schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 14684, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
