Part Image

1473350000 - Weidmüller

Description: PCB terminal, 160 V, 12 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 6, PUSH IN with actuator, SMD solder connection, 135°, Tape

Download 1473350000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1473350000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

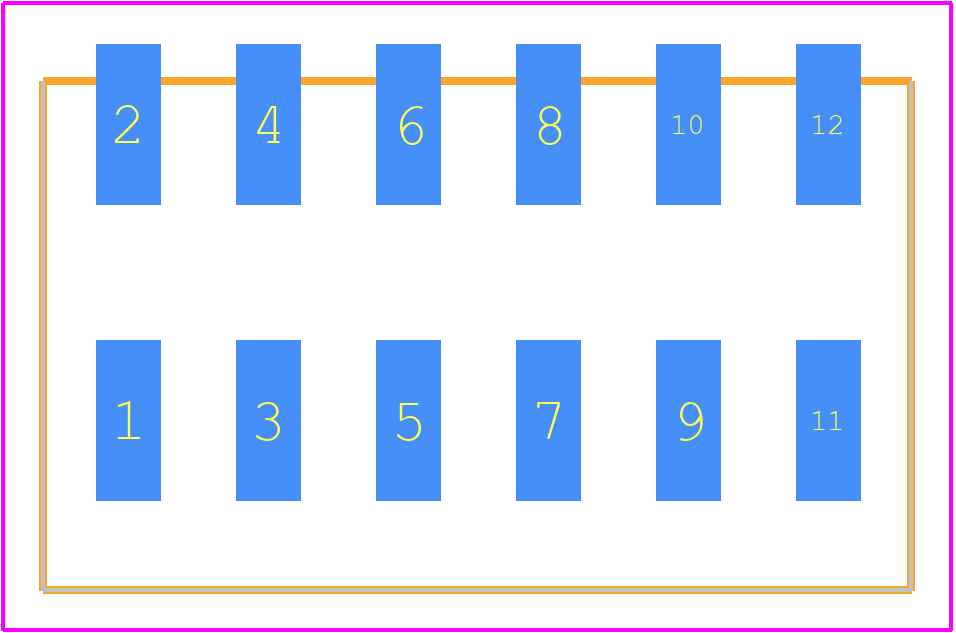

1473350000 - Weidmüller PCB footprint - Other - Other - 1473350000
click to zoom
3D Models
1473350000 - Weidmüller - 3D model - Other - 1473350000
click to zoom

1473350000 Details

  • Manufacturer Part Number:

    1473350000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1473350000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1473350000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1473350000 is compatible with various industrial protocols, including Modbus TCP, EtherNet/IP, and PROFINET, allowing for seamless integration with existing industrial networks.
  • The 1473350000 supports cable lengths of up to 100 meters, making it suitable for use in industrial applications where devices are located at a distance from the central control unit.
  • Yes, the 1473350000 has built-in surge protection, which helps to protect the device and connected equipment from voltage spikes and electromagnetic interference (EMI).
  • The 1473350000 is designed for use in non-hazardous locations. However, Weidmüller offers other products that are certified for use in hazardous locations, such as explosion-proof areas.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1473350000 Overview

Use the download button to access the 1473350000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14733, or try a keyword search, such as Terminals and Terminal Blocks
