- Part Number 1473567-4
- Manufacturer TE Connectivity
- Pin Count 16
- Part Category Connector
- Package Category Other

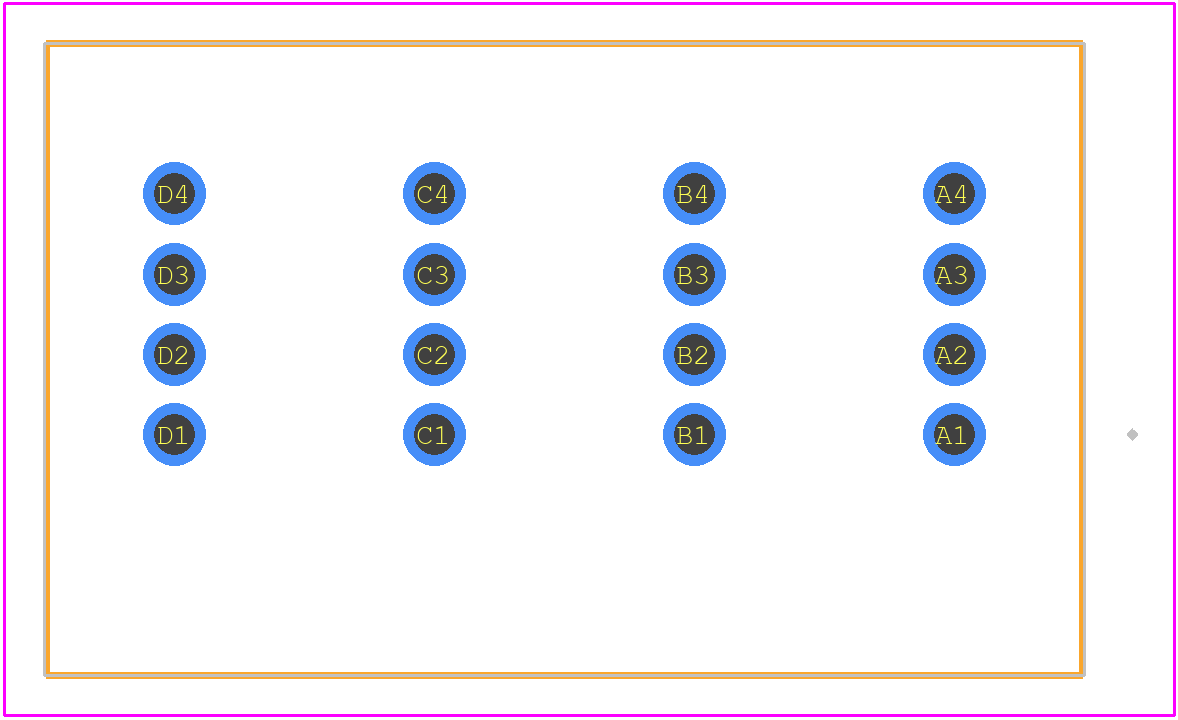

- Footprint Name Other - 1473567-4-1
- Released Date Feb 12, 2020
- Pinout / Pin List Click Here (Member Only)
1473567-4 Details
-
Manufacturer Part Number:
1473567-4
-
Brand Name:
TE Connectivity
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Unknown
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
TE Connectivity
-
YTEOL:
7
-
Body Breadth:
0.622 inch
-
Body Depth:
0.511 inch
1473567-4 Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
-
Yes, the 1473567-4 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
-
The operating temperature range for the 1473567-4 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
-
The 1473567-4 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and follow TE Connectivity's guidelines for use in humid or wet environments.
-
The recommended wire size for the 1473567-4 connector is 24-20 AWG (0.25-0.5 mm²). It's essential to use wires with a suitable insulation material and follow TE Connectivity's guidelines for wire preparation and termination.
Trust Checks
Expert Contribution
System Verified
Community Approved
1473567-4 Overview
Use the download button to access the 1473567-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14735,
or try a keyword search, such as Headers and Edge Type Connectors
