Part Image

1473649-2 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: PCB Mount Orientation Horizontal | Number of Rows 3 | Number of Sections 6 | Number of Signal Positions 200 | Number of Positions 200 | Contact Features: Mating Tab Width 1 MM | Mating Tab Thickness .64 MM | Mating Tab Thickness .025 INCH | Contact Type Tab | Mating Tab Width .025 INCH | Contact Mating Area Plating Material Gold | Mating Tab Width .039 INCH | Contact Size 1mm | Contact Size .64mm | Mating Tab Width .64 MM | Dimensions: P

Download 1473649-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1473649-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

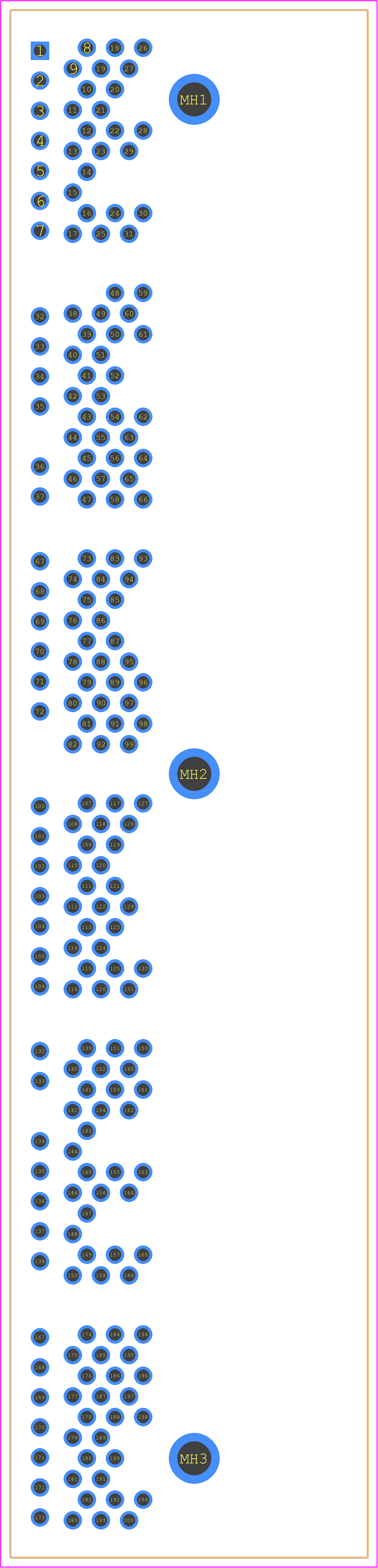

1473649-2 - TE Connectivity PCB footprint - Other - Other - 1473649-2-1
click to zoom
3D Models
1473649-2 - TE Connectivity - 3D model - Other - 1473649-2-1
click to zoom

1473649-2 Details

  • Manufacturer Part Number:

    1473649-2

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    6.492 inch

  • Body Depth:

    0.894 inch

  • Body Length:

    1.451 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    200

1473649-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1473649-2 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as industrial control systems, transportation, and more.
  • The 1473649-2 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial control systems to automotive and aerospace.
  • Yes, the 1473649-2 connector is part of TE Connectivity's AMPSEAL series, which is designed to be compatible with other AMPSEAL products. This allows for easy integration and mating with other connectors, headers, and accessories in the series.
  • The 1473649-2 connector has an IP67 rating, which means it is protected against solid objects and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. This makes it suitable for use in harsh environments and outdoor applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1473649-2 Overview

Use the download button to access the 1473649-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14736, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
