15-24-1501 - Molex

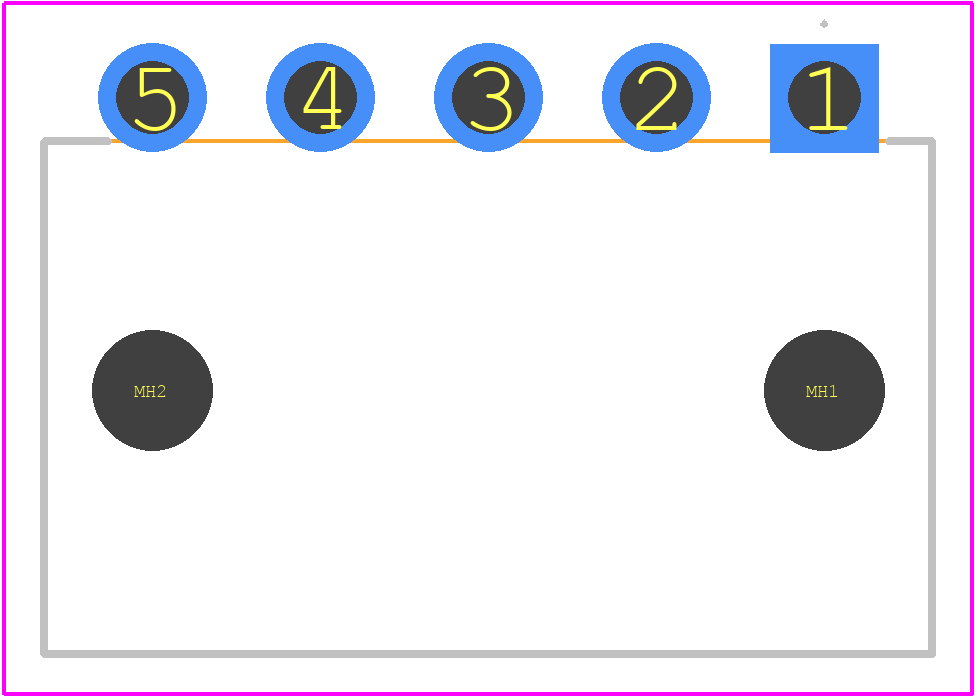

15-24-1501 Details

• Manufacturer Part Number:

  15-24-1501

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Molex

• YTEOL:

  7.43

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.213 inch

• Body Depth:

  0.547 inch

• Body Length:

  0.874 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  RECTANGULAR POWER CONNECTOR

• Contact Arrangement:

  S0P5

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Resistance:

  10 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  2200VAC V

• Durability:

  30 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insertion Force-Max:

  14.6784 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  POLYAMIDE

• JESD-609 Code:

  e3

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Plating Thickness:

  100u inch

• Reference Standard:

  CSA, UL

• Terminal Length:

  0.138 inch

• Termination Type:

  SOLDER

• Total Number of Contacts:

  5

• Withdrawl Force-Min:

  .5004 N
