15-31-1066 - Molex

Description: Molex STANDARD .093 Series, Series Number 5219, 6.7mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 9A

Download 15-31-1066 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

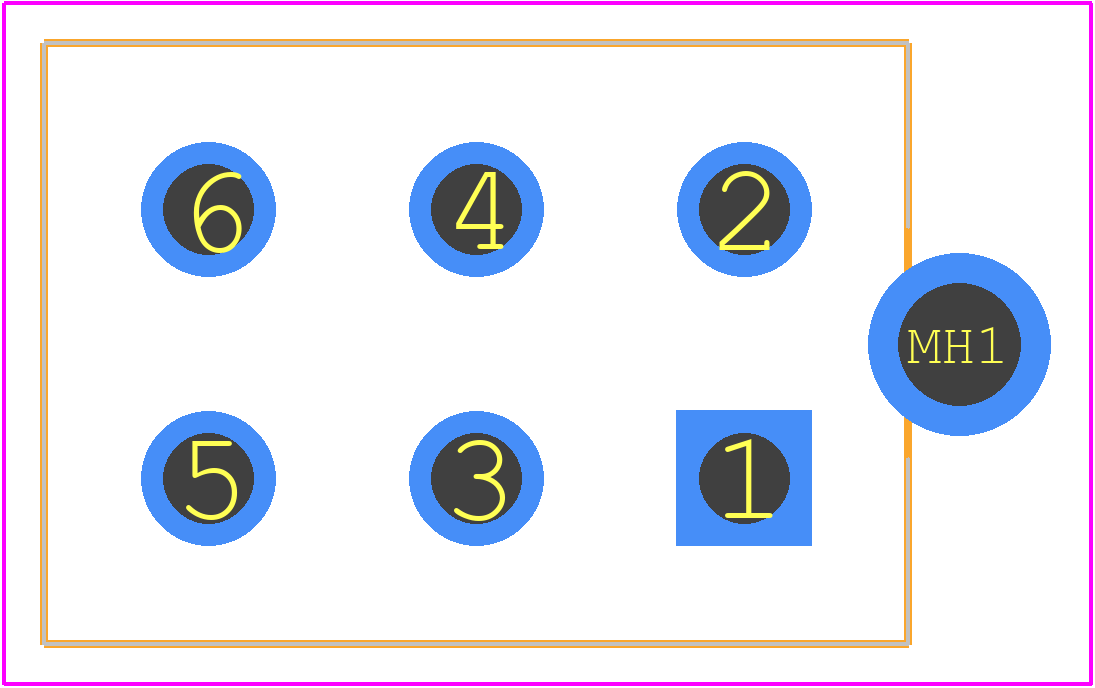

15-31-1066 - Molex PCB footprint - Other - Other - 15-31-1066-2
click to zoom
3D Models
15-31-1066 - Molex  - 3D model - Other - 15-31-1066-2
click to zoom

15-31-1066 Details

  • Manufacturer Part Number:

    15-31-1066

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Hong Kong SAR, Japan, Mainland China, Mexico, South Korea, USA

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.5

  • Additional Feature:

    POLARIZED

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.642 inch

  • Body Depth:

    0.591 inch

  • Body Length:

    0.976 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P6

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE OR FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Durability:

    30 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA, UL

  • Terminal Length:

    0.138 inch

  • Terminal Pitch:

    6.7056 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-2
