150319 - LUMBERG

Description: Jack chassis socket according to JEITA RC-5325A JC35J4A, 3.5 mm, 4 poles/stereo, angular version, for printed circuit boards

Download 150319 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
150319 - LUMBERG - PCB symbol
click to zoom
PCB Footprints

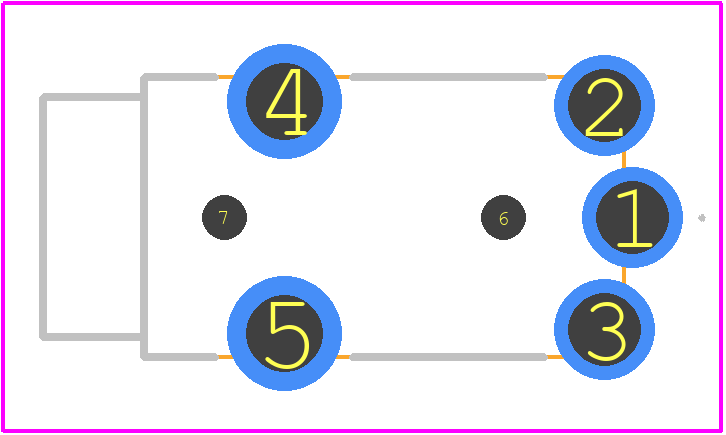

150319 - LUMBERG PCB footprint - Other - Other - 150319-1
click to zoom

150319 Details

  • Manufacturer Part Number:

    150319

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Lumberg Connect GmbH

  • YTEOL:

    0

  • Connector Type:

    3.5mm Audio

  • Contact Finish Termination:

    Silver (Ag)

  • JESD-609 Code:

    e4

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

150319 Overview

Use the download button to access the 150319 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 15031, or try a keyword search, such as Audio/RCA Connectors
