1510481609 - Molex

Description: CP-6.5 Header, 6.50mm Pitch, Dual Row, Vertical, Polarized, Positive Lock, Tray Packaging, Glow-Wire Capable, 6 Circuits, Red

Download 1510481609 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1510481609 - Molex - PCB symbol
click to zoom
PCB Footprints

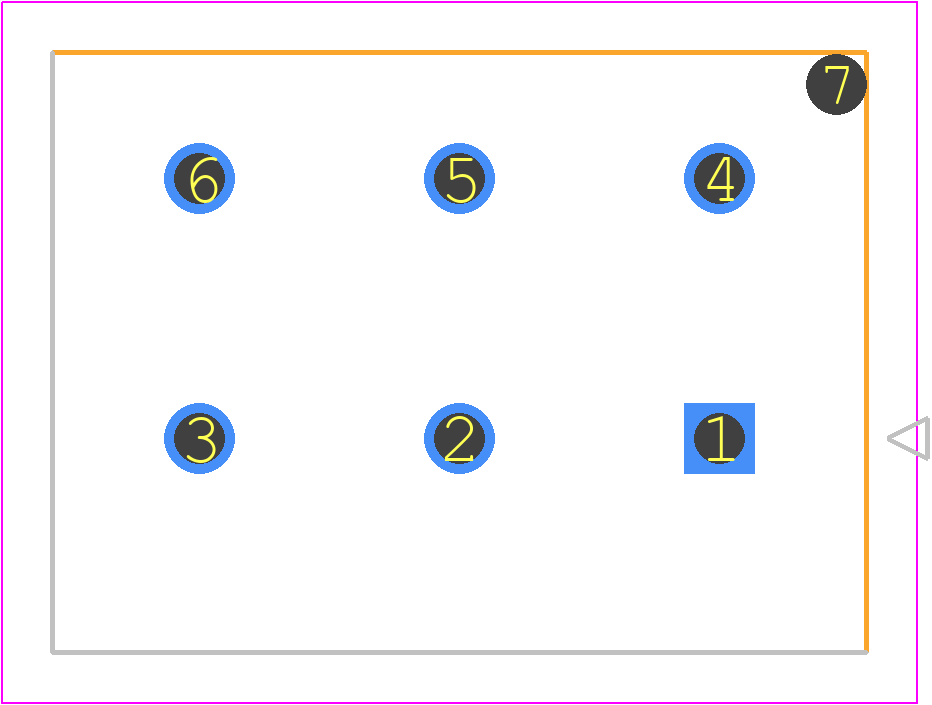

1510481609 - Molex PCB footprint - Other - Other - 15104816YY01060911
click to zoom
3D Models
1510481609 - Molex - 3D model - Other - 15104816YY01060911
click to zoom

1510481609 Details

  • Manufacturer Part Number:

    1510481609

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT (POWER): 10A

  • Body Breadth:

    0.591 inch

  • Body Depth:

    0.63 inch

  • Body Length:

    0.801 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

1510481609 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 1510481609 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 1510481609 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and strain relief to prevent connector damage.
  • The maximum cable bend radius for the 1510481609 connector is 10mm. Exceeding this radius may cause damage to the cable or connector.
  • The 1510481609 connector is designed for use with specific cable types. Before using it with a different cable type, ensure that the cable meets Molex's specifications and guidelines for compatibility.
  • The operating temperature range for the 1510481609 connector is -40°C to 105°C. Exceeding this range may affect the connector's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1510481609 Overview

Use the download button to access the 1510481609 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15104, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
