151226-7422-RB footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

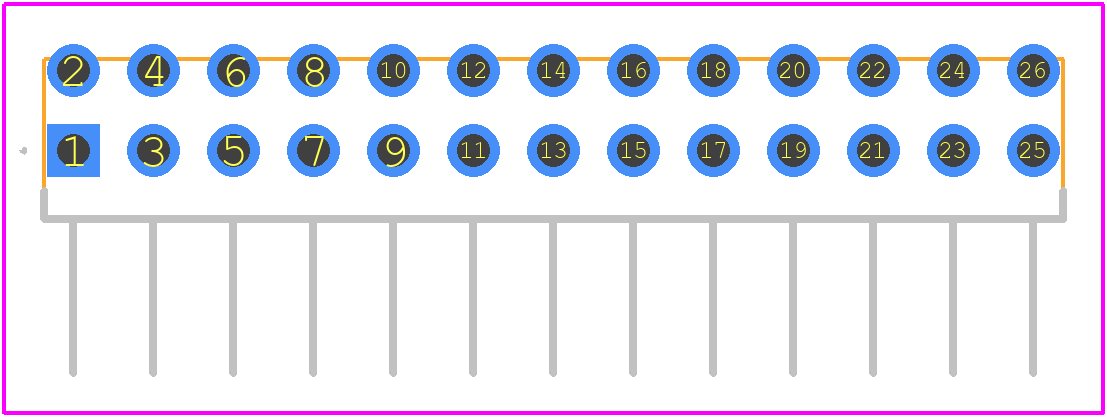

151226-7422-RB - 3M PCB footprint - Other - Other - 151226-7422-RB-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 151226-7422-RB
Part Number 151226-7422-RB
Manufacturer 3M
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - 151226-7422-RB-4
Released Date Apr 20, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

151226-7422-RB Details

Manufacturer Part Number:
151226-7422-RB
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
3M Interconnect
YTEOL:
0
Additional Feature:
3M
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (30) OVER NICKEL (100)
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
COPPER ALLOY
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
26
UL Flammability Code:
94V-0

151226-7422-RB Frequently Asked Questions (FAQs)

The recommended torque is typically between 0.5 to 1.5 Nm (5-15 in-lbs), but it's best to consult the specific application notes or contact 3M support for precise guidance.
Yes, the 151226-7422-RB is designed to withstand vibrations and shocks, but it's essential to ensure proper mounting and screw torque to maintain reliability. Consult the datasheet and application notes for specific guidance.
The 151226-7422-RB has a rated operating temperature range of -40°C to 125°C. However, it's crucial to consider the specific application and potential thermal stresses. Consult the datasheet and contact 3M support for guidance on high-temperature applications.
The 151226-7422-RB is designed for standard PCB thicknesses (1.57 mm or 0.062 in). Using it with non-standard thicknesses may affect reliability. Consult the datasheet and application notes or contact 3M support for guidance on custom PCB thicknesses.
Follow the recommended cleaning process outlined in the datasheet or application notes. Typically, a soft brush and mild solvents like isopropyl alcohol or deionized water are recommended. Avoid using harsh chemicals or abrasive materials that may damage the connector.

Trust Checks

Community Provided

System Verified

Community Approved

151226-7422-RB Overview

Use the download button to access the 151226-7422-RB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 15122, or try a keyword search, such as Headers and Edge Type Connectors
