1512860000 - Weidmüller

Description: PCB plug-in connector, male header, open side, THT solder connection, 5.08 mm, Number of poles: 4, 90°, Solder pin length (l): 4.5 mm, tinned, orange, Box

Download 1512860000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1512860000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

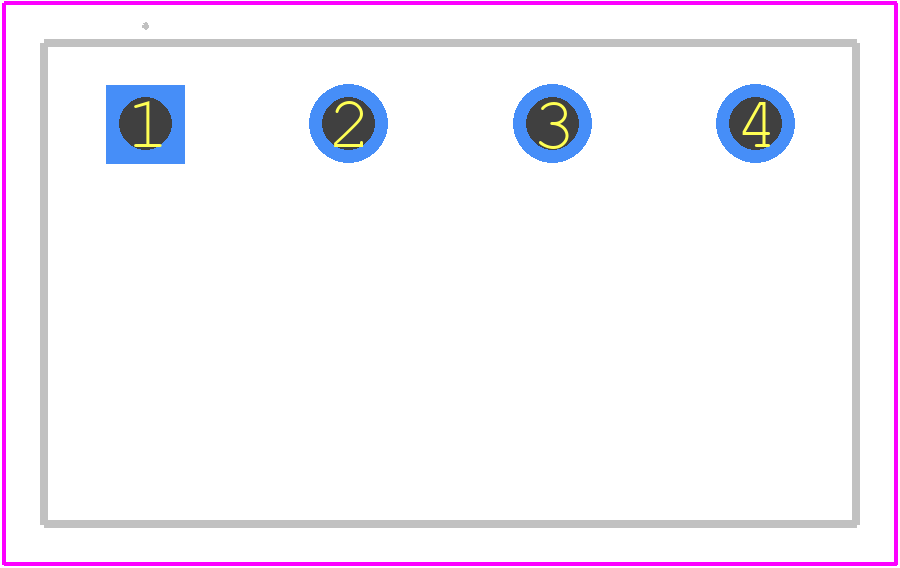

1512860000 - Weidmüller PCB footprint - Other - Other - 1512860000-1
click to zoom
3D Models
1512860000 - Weidmüller - 3D model - Other - 1512860000-1
click to zoom

1512860000 Details

  • Manufacturer Part Number:

    1512860000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1512860000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1512860000 is -40°C to 85°C.
  • Yes, the 1512860000 is RoHS and REACH compliant, making it suitable for use in the European Union.
  • The maximum current rating of the 1512860000 is 16 A per pin.
  • Yes, the 1512860000 is designed for use in harsh environments and has a high level of resistance to vibration, shock, and moisture.
  • Yes, the 1512860000 is designed to be compatible with other Weidmüller products, including their range of connectors and terminals.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1512860000 Overview

Use the download button to access the 1512860000 schematic symbol, PCB footprint, and 3D model.
