1513060000 - Weidmüller

Description: Weidmuller SL 5.08 Series, 5.08mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 12A

Download 1513060000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1513060000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

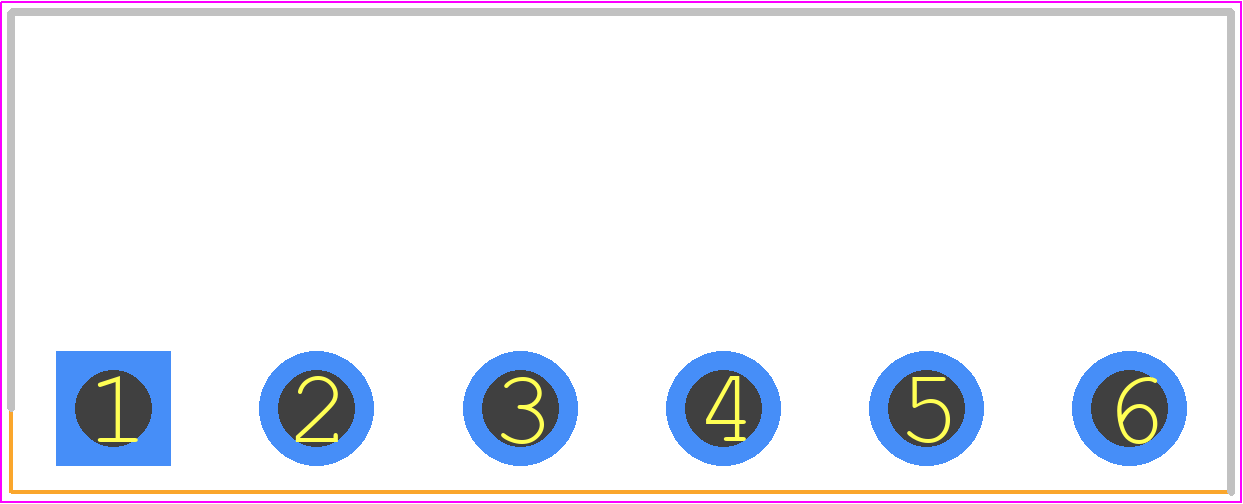

1513060000 - Weidmüller PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 1513060000
click to zoom
3D Models
1513060000 - Weidmüller - 3D model - Header, Shrouded - Right Angle PTH Box - 1513060000
click to zoom

1513060000 Details

  • Manufacturer Part Number:

    1513060000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1513060000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1513060000 is -40°C to 85°C, according to the manufacturer's specifications.
  • Yes, the 1513060000 is RoHS and REACH compliant, making it suitable for use in the European Union and other regions with similar regulations.
  • The maximum current rating of the 1513060000 is 16 A per pin, according to the datasheet.
  • Yes, the 1513060000 is designed to be used in harsh environments, including industrial and transportation applications, due to its rugged construction and protective features.
  • Yes, the 1513060000 is designed to be compatible with other Weidmüller products, including their range of connectors and interfaces.
