Part Image

1513660000 - Weidmüller

Description: PCB plug-in connector, pin row, open side, Through-hole reflow soldering connection, 5.08 mm, Number of poles: 12, 90°, Solder pin, length (l): 4.5 mm, tin-plated, Orange, Box

Download 1513660000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1513660000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

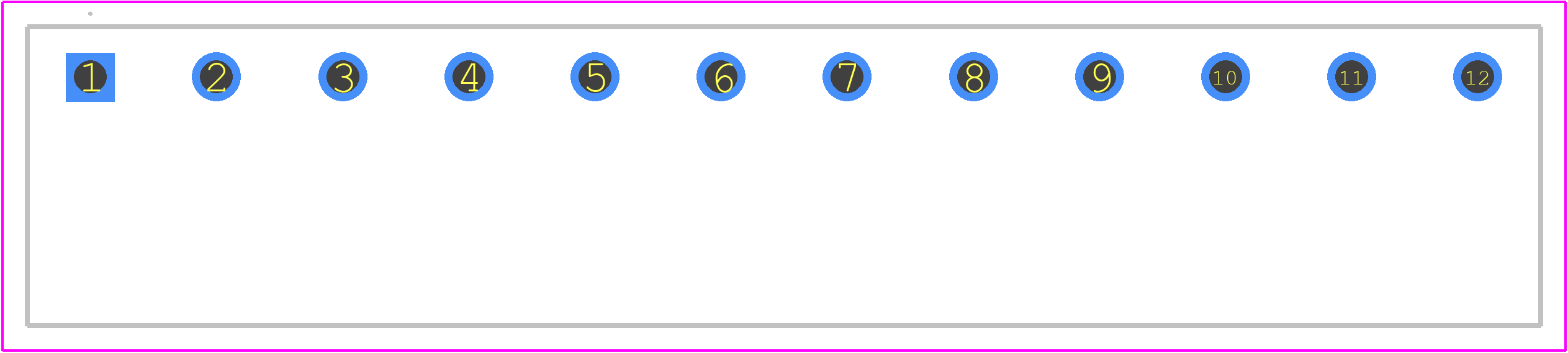

1513660000 - Weidmüller PCB footprint - Other - Other - 1513660000-1
click to zoom
3D Models
1513660000 - Weidmüller - 3D model - Other - 1513660000-1
click to zoom

1513660000 Details

  • Manufacturer Part Number:

    1513660000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1513660000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1513660000 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1513660000 connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2 and EN 61373 Cat. 2 standards, ensuring reliable connections in harsh environments.
  • The 1513660000 connector has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in humid or wet environments.
  • The 1513660000 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections over an extended period.
  • Yes, the 1513660000 connector is designed to be compatible with other Weidmüller products, such as their range of terminals and connectors, making it easy to integrate into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1513660000 Overview

Use the download button to access the 1513660000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15136, or try a keyword search, such as Terminals and Terminal Blocks
