- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 1515310000
- Part Number 1515310000
- Manufacturer Weidmüller
- Pin Count 8
- Part Category Connector
- Package Category Other

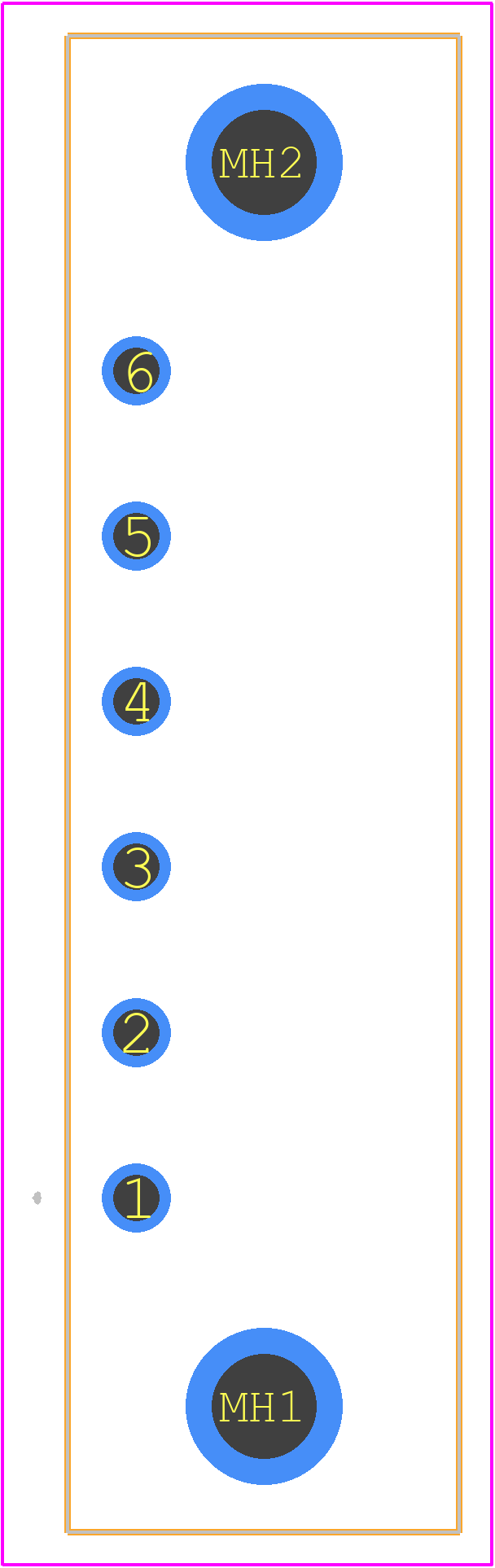

- Footprint Name Other - 1515310000-5
- Released Date Mar 15, 2020
- Last Modified Date Aug 1, 2025 2:27 PM UTC
- Pinout / Pin List Click Here (Member Only)
1515310000 Details
-
Manufacturer Part Number:
1515310000
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Weidmüller Interface GmbH & Co. KG
-
YTEOL:
0
-
Fastening Method:
CONNECTOR
-
Mounting Type:
BOARD
-
Number of Decks:
1
1515310000 Frequently Asked Questions (FAQs)
-
The operating temperature range for the 1515310000 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and commercial applications.
-
Yes, the 1515310000 connector is designed for outdoor use and has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in harsh environments.
-
The mating cycle for the 1515310000 connector is 500 cycles, which means it can be connected and disconnected up to 500 times without compromising its performance or reliability.
-
Yes, the 1515310000 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in the European Union and other regions with similar regulations.
-
The recommended torque for the 1515310000 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environment. It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the connector.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1515310000 Overview
Use the download button to access the 1515310000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15153,
or try a keyword search, such as Terminals and Terminal Blocks
