The recommended torque for the screw locks is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Yes, the 15210202601000 connector is designed to withstand high-vibration environments, but it's recommended to consult with HARTING's technical support to ensure the connector meets the specific vibration requirements of your application.
The 15210202601000 connector has an IP67 rating, making it suitable for outdoor use in harsh environments, but it's essential to ensure proper sealing and protection from environmental factors such as UV radiation and extreme temperatures.
Yes, the 15210202601000 connector is designed to be compatible with other HARTING products, including their Han-Modular series. However, it's recommended to consult with HARTING's technical support to ensure compatibility and proper mating.
The 15210202601000 connector has an operating temperature range of -40°C to 125°C, but it's essential to consult the datasheet and HARTING's technical support for specific temperature ratings and derating factors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
15210202601000 Overview

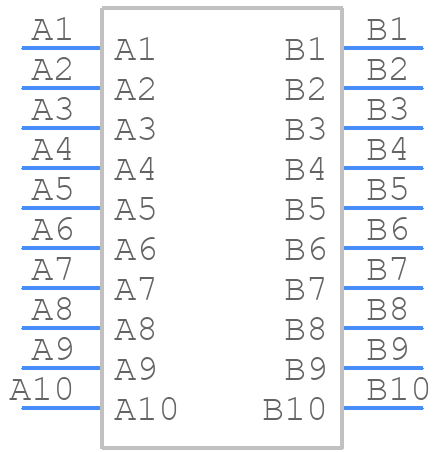

Use the download button to access the 15210202601000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15210,
or try a keyword search, such as Headers and Edge Type Connectors
