15210262401000 - HARTING

Description: har-flex straight female 6.25mm, 26pin, PL1, with through hole hold downs, 220pcs

Download 15210262401000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

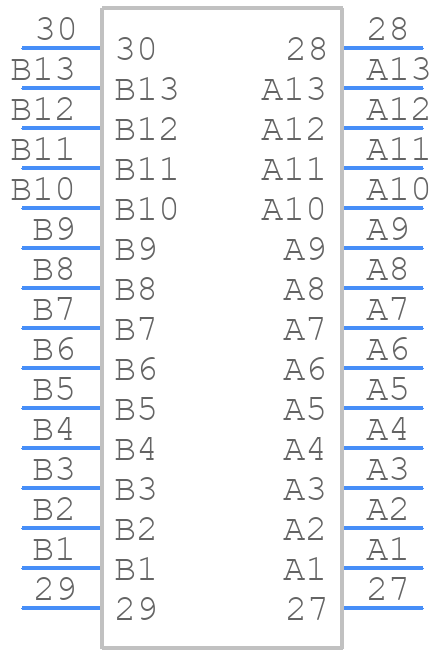

15210262401000 - HARTING - PCB symbol
click to zoom
PCB Footprints

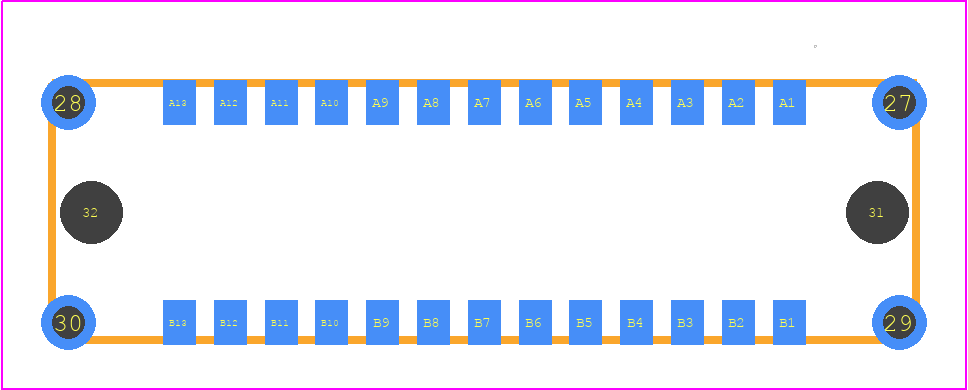

15210262401000 - HARTING PCB footprint - Other - Other - 15210262401000
click to zoom
3D Models
15210262401000 - HARTING - 3D model - Other - 15210262401000
click to zoom

15210262401000 Details

  • Manufacturer Part Number:

    15210262401000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.75

  • Connector Type:

    BOARD STACKING CONNECTOR
