The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the HARTING application notes for specific guidance.
Yes, the 15210402601000 connector is designed to withstand vibrations up to 10g according to IEC 61373. However, it's crucial to ensure proper mounting and screw locking to maintain the connector's integrity.
The 15210402601000 connector has an IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to follow HARTING's guidelines for sealing and cable management to maintain the IP rating.
While the 15210402601000 connector is designed for use with HARTING cables, it's possible to use cables from other manufacturers. However, it's crucial to ensure the cable meets HARTING's specifications and is properly assembled to maintain the connector's performance and reliability.
The 15210402601000 connector is designed to operate in temperatures ranging from -40°C to 125°C. However, it's essential to consult the datasheet and HARTING's application notes for specific guidance on temperature-related derating and performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
15210402601000 Overview

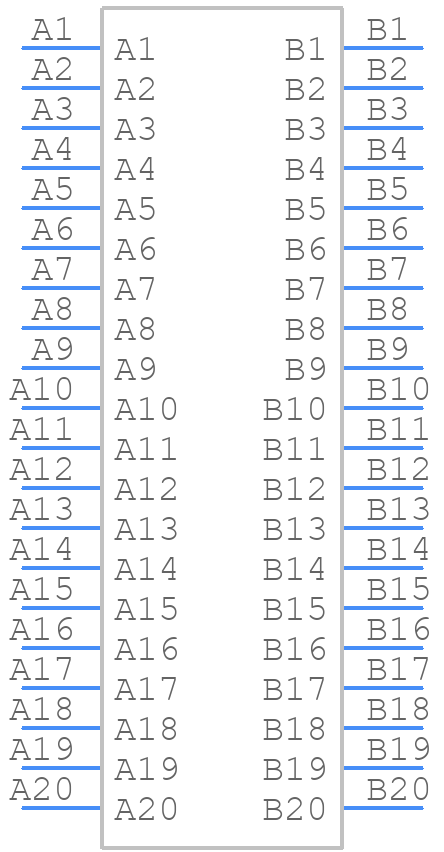

Use the download button to access the 15210402601000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15210,
or try a keyword search, such as Headers and Edge Type Connectors
