The recommended torque is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes or contact their technical support for specific guidance.
Yes, the 15210602601000 connector is designed to withstand vibrations and shocks according to IEC 61373 Cat 2. However, it's crucial to ensure proper mounting and screwing to the PCB to maintain the connector's integrity.
The 15210602601000 connector is rated for operating temperatures between -40°C to 125°C and can withstand humidities up to 95% RH. However, it's essential to consult the datasheet and HARTING's environmental specifications to ensure the connector meets the specific requirements of your application.
The 15210602601000 connector is designed for standard PCB thicknesses (1.6 mm or 0.063 in). For non-standard PCB thicknesses or materials, it's recommended to consult HARTING's technical support or application notes to ensure compatibility and proper mounting.
The 15210602601000 connector is rated for a minimum of 500 mating cycles. However, the actual number of mating cycles may vary depending on the application, environmental conditions, and connector maintenance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
15210602601000 Overview

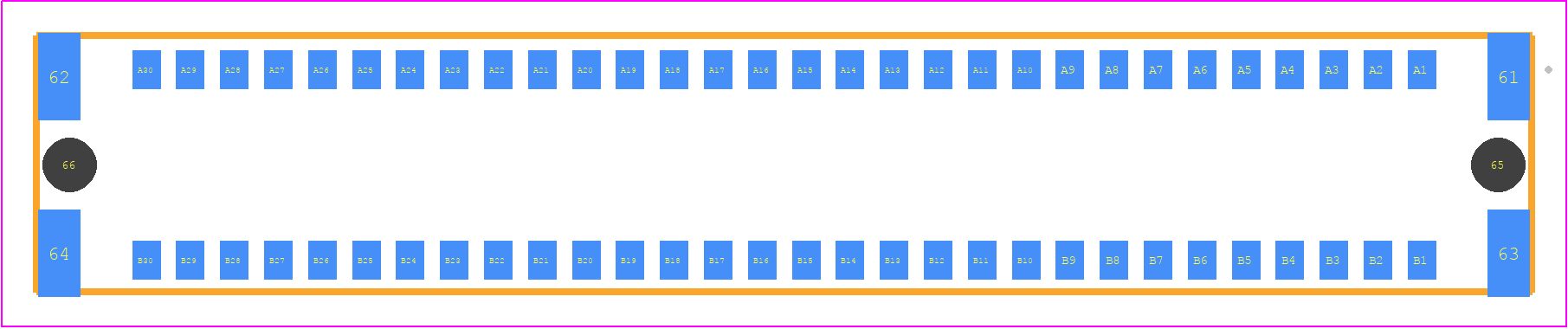

Use the download button to access the 15210602601000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15210,
or try a keyword search, such as Headers and Edge Type Connectors
