- Part Number 15220262601000
- Manufacturer HARTING
- Pin Count 26
- Part Category Connector
- Package Category Other
- Footprint Name Other - 15220262601000
- Released Date Nov 13, 2019
- Last Modified Date Oct 3, 2024 4:42 PM UTC
- Pinout / Pin List Click Here (Member Only)
15220262601000 Details
-
Manufacturer Part Number:
15220262601000
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
HARTING Technology Group
-
YTEOL:
8.75
-
Connector Type:
BOARD STACKING CONNECTOR
15220262601000 Frequently Asked Questions (FAQs)
-
The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
-
Yes, the 15220262601000 connector is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for use in high-vibration environments.
-
Yes, the connector is designed for automated assembly and is compatible with reflow soldering processes, with a maximum temperature of 260°C for 30 seconds.
-
The operating temperature range for the 15220262601000 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
-
The connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes, making it suitable for use in humid or wet environments.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
15220262601000 Overview

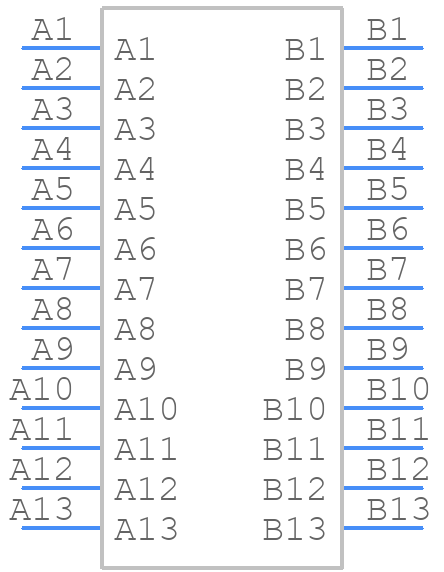

Use the download button to access the 15220262601000 schematic symbol, PCB footprint, and 3D model.
