- Part Number 15220322601000
- Manufacturer HARTING
- Pin Count 32
- Part Category Connector
- Package Category Other
- Footprint Name Other - 15220322601000
- Released Date Mar 9, 2020
- Last Modified Date Oct 3, 2024 4:42 PM UTC
- Pinout / Pin List Click Here (Member Only)
15220322601000 Details
-
Manufacturer Part Number:
15220322601000
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
HARTING Technology Group
-
YTEOL:
8.75
-
Connector Type:
BOARD STACKING CONNECTOR
15220322601000 Frequently Asked Questions (FAQs)
-
The recommended torque for screwing the 15220322601000 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
-
Yes, the 15220322601000 connector is designed for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures. However, it's essential to follow the recommended installation and sealing procedures to ensure IP67 rating.
-
Yes, the 15220322601000 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation, and construction equipment. However, it's crucial to follow the recommended mounting and screwing procedures to ensure reliable connections.
-
Yes, the 15220322601000 connector is part of the HARTING Han series and is compatible with other Han series products, including housings, inserts, and contacts. However, it's essential to verify compatibility with specific products and configurations.
-
The 15220322601000 connector has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of applications, including those in extreme temperature environments.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
15220322601000 Overview

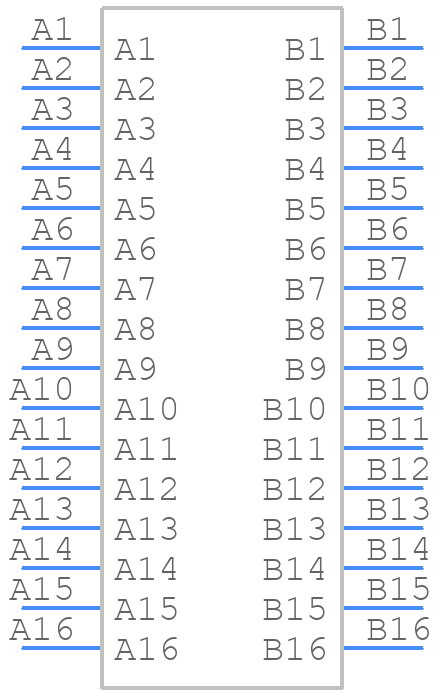

Use the download button to access the 15220322601000 schematic symbol, PCB footprint, and 3D model.
