- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 15220502601000
- Part Number 15220502601000
- Manufacturer HARTING
- Pin Count 50
- Part Category Connector
- Package Category Other
- Footprint Name Other - 15220502601000
- Released Date May 5, 2020
- Last Modified Date Oct 3, 2024 4:42 PM UTC
- Pinout / Pin List Click Here (Member Only)
15220502601000 Details
-
Manufacturer Part Number:
15220502601000
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
HARTING Technology Group
-
YTEOL:
8.75
-
Connector Type:
BOARD STACKING CONNECTOR
15220502601000 Frequently Asked Questions (FAQs)
-
The recommended torque is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
-
Yes, the connector is designed for outdoor use and can withstand harsh environmental conditions, including rain, snow, and extreme temperatures.
-
Yes, the connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
-
Yes, the 15220502601000 connector is compatible with other HARTING connectors, including the Han series, allowing for flexibility in design and application.
-
The maximum operating temperature of the connector is 125°C, making it suitable for use in high-temperature applications.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
15220502601000 Overview

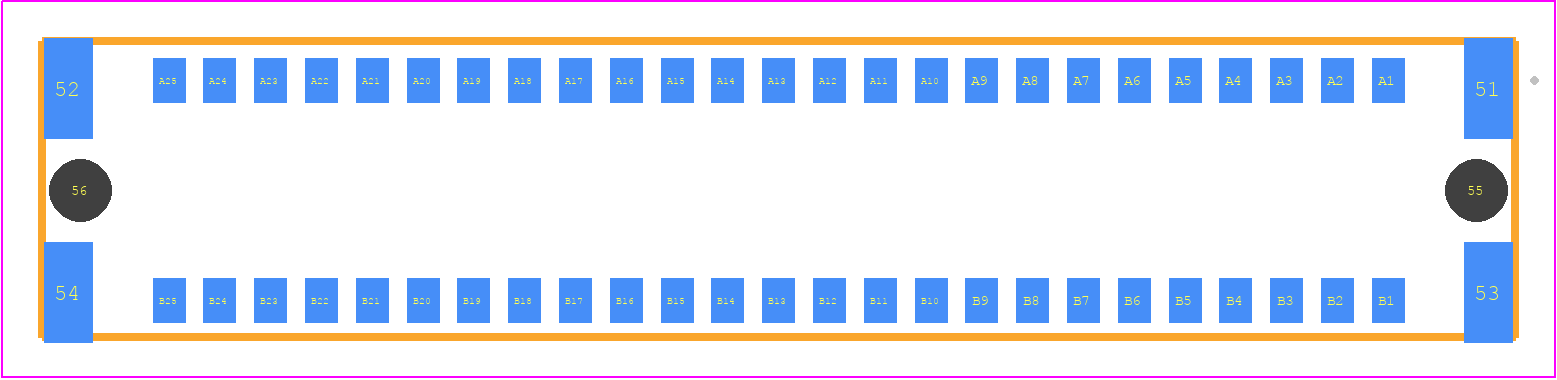

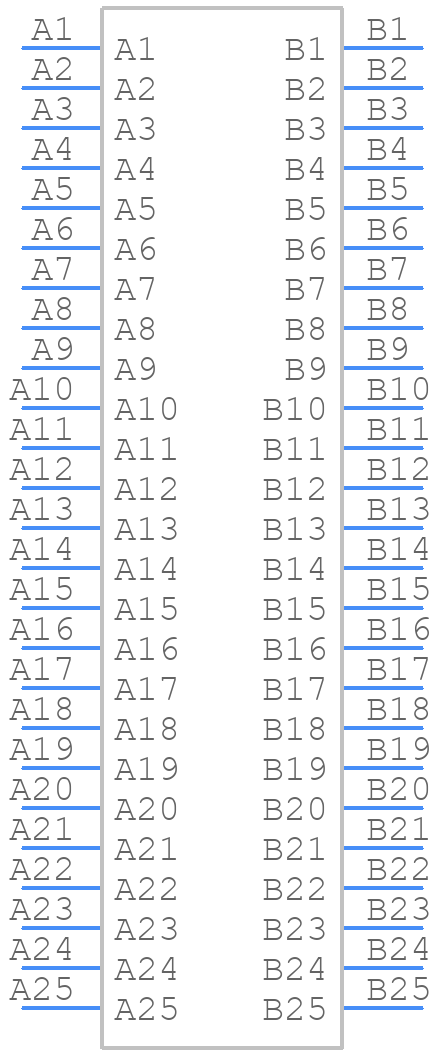

Use the download button to access the 15220502601000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15220,
or try a keyword search, such as Headers and Edge Type Connectors
