1522460000 - Weidmüller

Description: WEIDMULLER - 1522460000 - PIN HEADER, 8 POSITION, 5.08MM

Download 1522460000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1522460000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

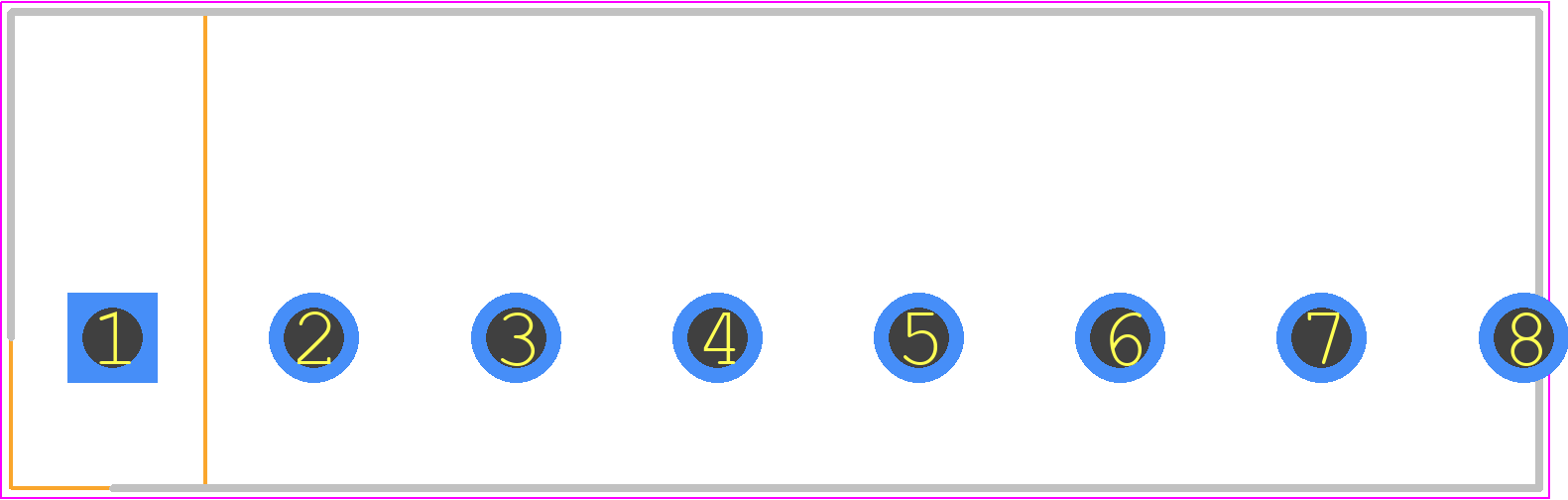

1522460000 - Weidmüller PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 1522460000
click to zoom
3D Models
1522460000 - Weidmüller - 3D model - Header, Shrouded - Straight PTH Box - 1522460000
click to zoom

1522460000 Details

  • Manufacturer Part Number:

    1522460000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL94V-0, PBT

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1522460000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1522460000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1522460000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental safety.
  • The recommended torque for the screw terminals on the 1522460000 is 0.5 Nm to 1.2 Nm, as specified by Weidmüller.
  • The 1522460000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications.
  • The typical lead time for delivery of the 1522460000 varies depending on the region and availability. It is recommended to check with Weidmüller or an authorized distributor for the most up-to-date lead time information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1522460000 Overview

Use the download button to access the 1522460000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15224, or try a keyword search, such as Terminals and Terminal Blocks
