1524160000 - Weidmüller

Description: Connector,PCB,header,closed ends,5.08mm pitch,2 way

Download 1524160000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1524160000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

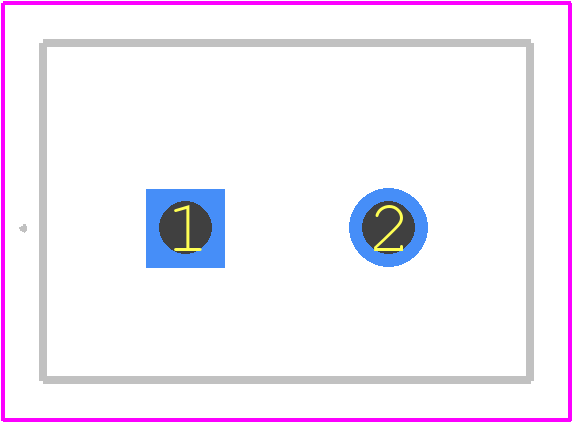

1524160000 - Weidmüller PCB footprint - Other - Other - 1524160000-1
click to zoom
3D Models
1524160000 - Weidmüller - 3D model - Other - 1524160000-1
click to zoom

1524160000 Details

  • Manufacturer Part Number:

    1524160000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    2 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL94V-0; PBT

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    17

  • Packing Method:

    BOX

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
