15250206601000 - HARTING

Description: 20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle

Download 15250206601000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

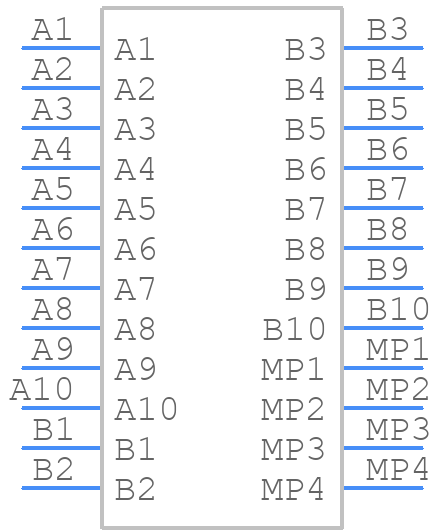

15250206601000 - HARTING - PCB symbol
click to zoom
PCB Footprints
15250206601000 - HARTING PCB footprint - Other - Other - 15250206601000-1
click to zoom
3D Models
15250206601000 - HARTING - 3D model - Other - 15250206601000-1
click to zoom

15250206601000 Details

  • Manufacturer Part Number:

    15250206601000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Termination:

    Tin (Sn)

  • JESD-609 Code:

    e3

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

15250206601000 Overview

Use the download button to access the 15250206601000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15250, or try a keyword search, such as Headers and Edge Type Connectors
