15250262601000 - HARTING

Description: har-flex angled female, 26pin, PL1, 560pcs

Download 15250262601000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

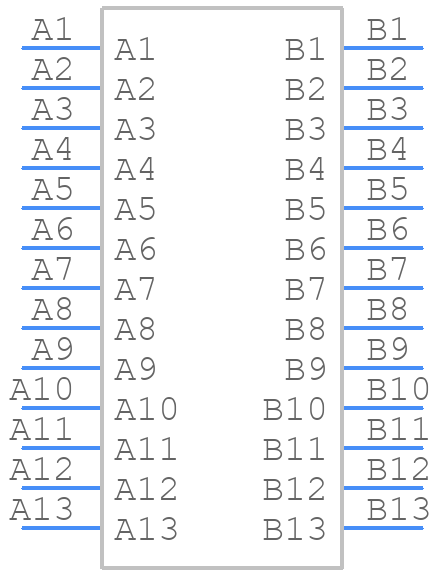

Symbol
15250262601000 - HARTING - PCB symbol
click to zoom
PCB Footprints
15250262601000 - HARTING PCB footprint - Other - Other - 15250262601000
click to zoom
3D Models
15250262601000 - HARTING - 3D model - Other - 15250262601000
click to zoom

15250262601000 Details

  • Manufacturer Part Number:

    15250262601000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insertion Force-Max:

    13 N

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    26

15250262601000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 15250262601000 connector is -40°C to 125°C, as per the HARTING Technology Group's specifications.
  • Yes, the 15250262601000 connector is designed to withstand high-vibration environments, making it suitable for applications in industries such as transportation, aerospace, and industrial automation.
  • The 15250262601000 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • The 15250262601000 connector is designed to be resistant to various chemicals, including fuels, oils, and cleaning agents. However, it's recommended to consult the HARTING Technology Group's documentation for specific chemical resistance information.
  • The 15250262601000 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in applications with frequent mating and unmating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

15250262601000 Overview

Use the download button to access the 15250262601000 schematic symbol, PCB footprint, and 3D model.
