15250262601333 - HARTING

Description: Connectors, Female connector, Reflow soldering termination (SMT), Contacts: 26, Angled

Download 15250262601333 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

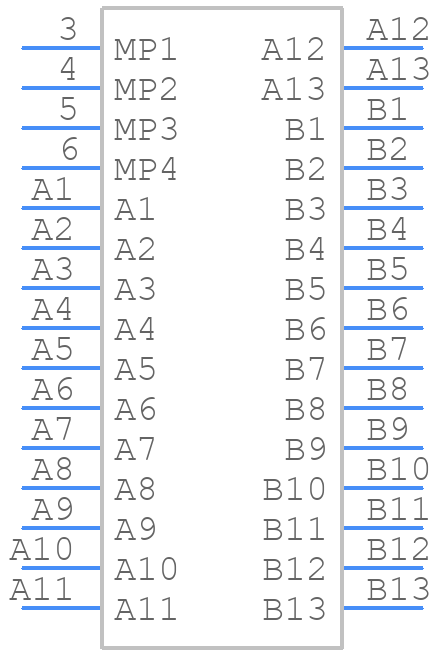

15250262601333 - HARTING - PCB symbol
click to zoom
PCB Footprints

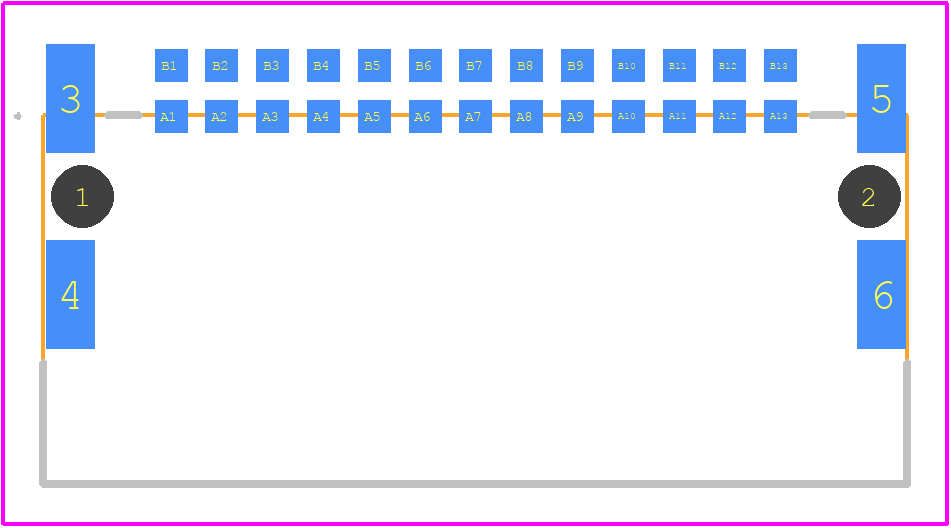

15250262601333 - HARTING PCB footprint - Other - Other - 15250262601333-1
click to zoom
3D Models
15250262601333 - HARTING - 3D model - Other - 15250262601333-1
click to zoom

15250262601333 Details

  • Manufacturer Part Number:

    15250262601333

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e3

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

15250262601333 Overview

Use the download button to access the 15250262601333 schematic symbol, PCB footprint, and 3D model.
