The recommended torque is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes or contact their technical support for specific guidance.
Yes, the 15250402601000 connector is designed to withstand vibrations and shocks according to IEC 61373 Cat 2. However, it's crucial to ensure proper mounting and screwing to prevent damage or disconnection.
The 15250402601000 connector has a IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to ensure proper sealing and protection of the connector and cables to maintain the IP rating.
The 15250402601000 connector is designed for specific cable types and sizes. Using a different cable type or size may affect the connector's performance, reliability, and safety. It's recommended to consult HARTING's technical support or application notes for guidance on compatible cable options.
The 15250402601000 connector has an operating temperature range of -40°C to +125°C. However, it's essential to consider the temperature rating of the specific application, PCB, and cables to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
15250402601000 Overview

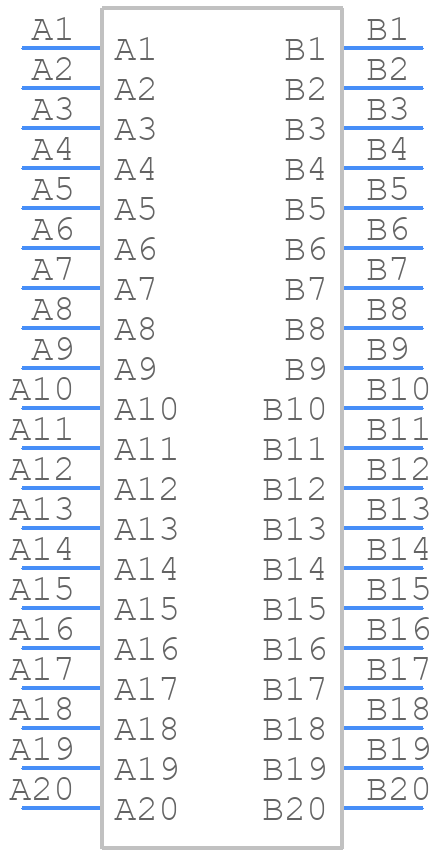

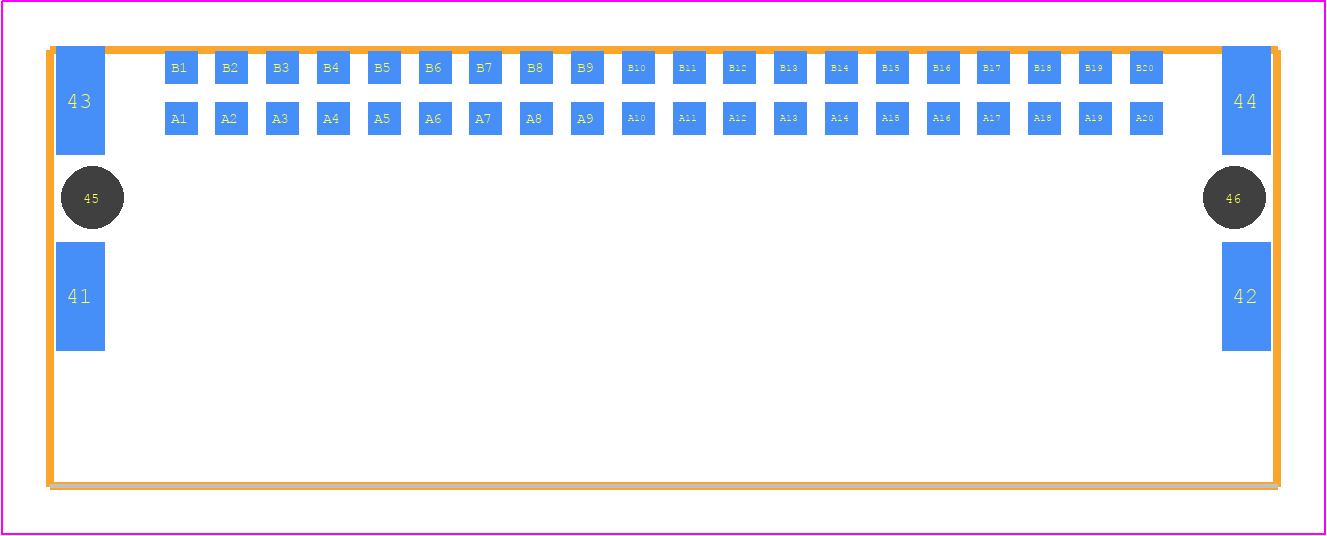

Use the download button to access the 15250402601000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15250,
or try a keyword search, such as Headers and Edge Type Connectors
