Technical Content
Part Image

15250682601000 - HARTING

Description: har-flex angled female, 68pin, PL1, 560pcs

Download 15250682601000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
15250682601000 - HARTING - PCB symbol
click to zoom

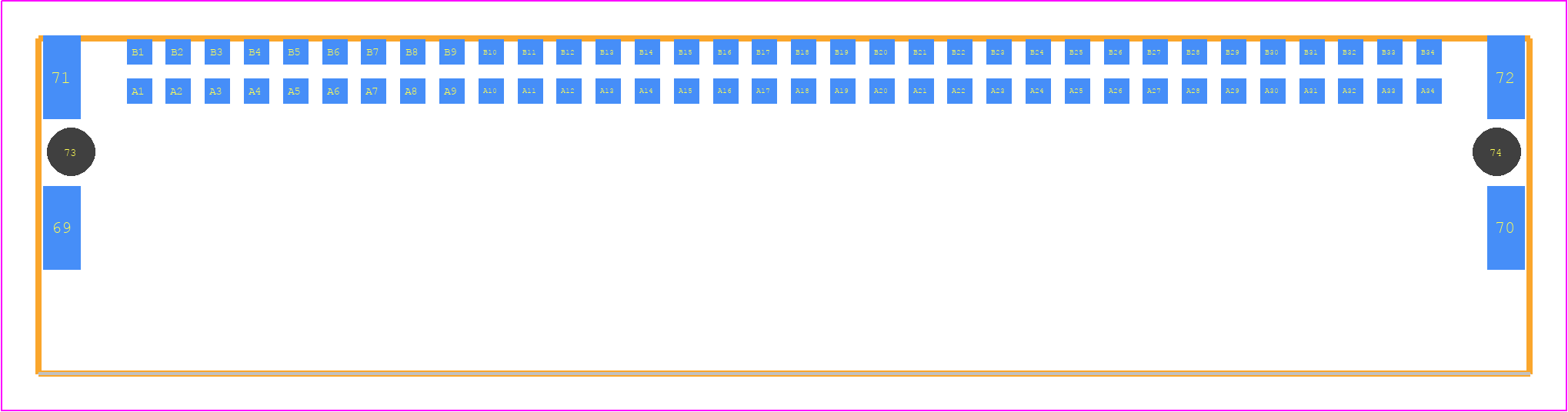

PCB Footprints
15250682601000 - HARTING PCB footprint - Other - Other - 15250682601000
click to zoom
3D Models
15250682601000 - HARTING - 3D model - Other - 15250682601000
click to zoom

15250682601000 Details

  • Manufacturer Part Number:

    15250682601000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e3

15250682601000 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 15250682601000 connector is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for use in high-vibration environments.
  • Yes, the connector is designed for automated assembly and can withstand reflow soldering temperatures up to 260°C for 30 seconds.
  • The operating temperature range for this connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
  • The connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

15250682601000 Overview

Use the download button to access the 15250682601000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15250, or try a keyword search, such as Headers and Edge Type Connectors
