1534512-3 - TE Connectivity

Description: Automotive Connectors 80 POS PIN HDR WITH PIN GUIDE

Download 1534512-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1534512-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

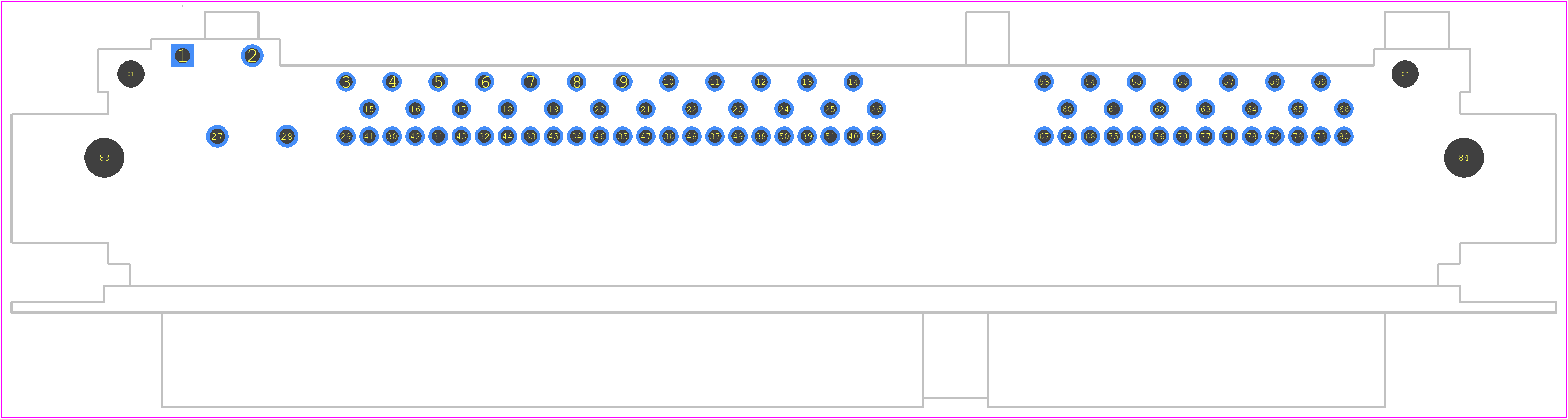

1534512-3 - TE Connectivity PCB footprint - Other - Other - 1534512-3-6
click to zoom
3D Models
1534512-3 - TE Connectivity - 3D model - Other - 1534512-3-6
click to zoom

1534512-3 Details

  • Manufacturer Part Number:

    1534512-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body/Shell Style:

    PLUG

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    POLYAMIDE66

  • Total Number of Contacts:

    80

1534512-3 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 1534512-3 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and mounting.
  • The operating temperature range for the 1534512-3 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 1534512-3 connector is suitable for outdoor use, but it's recommended to follow TE Connectivity's guidelines for environmental sealing and protection.
  • It's not recommended to use a different wire gauge than specified in the datasheet, as it may affect the connector's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1534512-3 Overview

Use the download button to access the 1534512-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15345, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
