1537N - Hammond Manufacturing

Description: RF Inductors - Leaded RF Choke, heavy duty hash choke, inductance 500uH, DC current 3.2A, 1537 series

Download 1537N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1537N - Hammond Manufacturing - PCB symbol
click to zoom

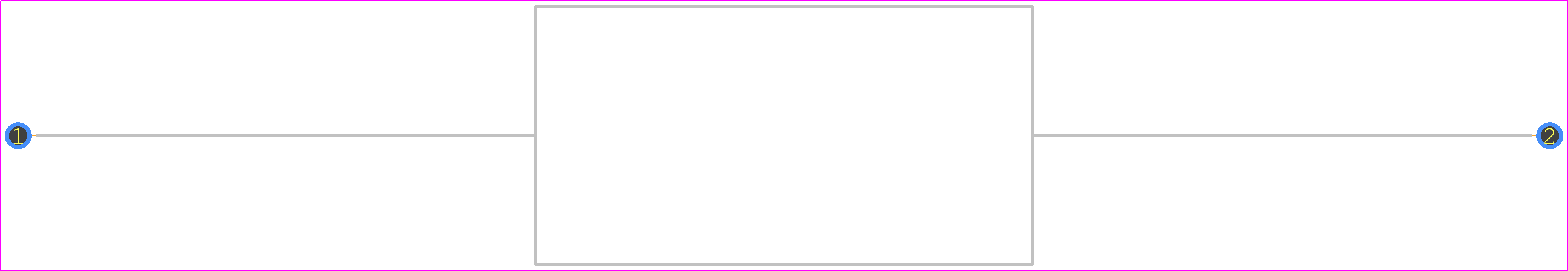

PCB Footprints
1537N - Hammond Manufacturing PCB footprint - Inductors, Axial Diameter Horizontal Mounting - Inductors, Axial Diameter Horizontal Mounting - 1537N
click to zoom
3D Models
1537N - Hammond Manufacturing - 3D model - Inductors, Axial Diameter Horizontal Mounting - 1537N
click to zoom

1537N Details

  • Manufacturer Part Number:

    1537N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Country Of Origin:

    Canada

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    6

  • Construction:

    Tubular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.26 Ω

  • Inductance-Nom (L):

    500 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    20 mm

  • Lead Length:

    38.1 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    135 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    16.51 mm

  • Package Length:

    31.75 mm

  • Package Style:

    Axial

  • Quality Factor-Min (at L-nom):

    11.6

  • Rated Current-Max:

    3.2 A

  • Shape/Size Description:

    TUBULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    AXIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    5%

1537N Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 1537N is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 1537N is designed to withstand high-vibration environments. However, it's recommended to follow the mounting instructions and ensure the enclosure is properly secured to prevent damage.
  • The 1537N is not designed for outdoor use and should be used in a dry, indoor environment. If outdoor use is required, consider using a NEMA-rated enclosure or applying additional environmental protection.
  • Yes, Hammond Manufacturing offers customization services for the 1537N. Contact their customer service department to discuss your specific requirements and obtain a quote.
  • The 1537N has an IP20 rating, which means it provides protection against solid objects larger than 12.5 mm and does not provide protection against water or moisture.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1537N Overview

Use the download button to access the 1537N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Fixed Inductors
