1538M24 - Hammond Canada

Description: 50 µH Unshielded Wirewound Inductor 15 A 13mOhm Max Radial, Horizontal Cylinder

Download 1538M24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1538M24 - Hammond Canada - PCB symbol
click to zoom
PCB Footprints

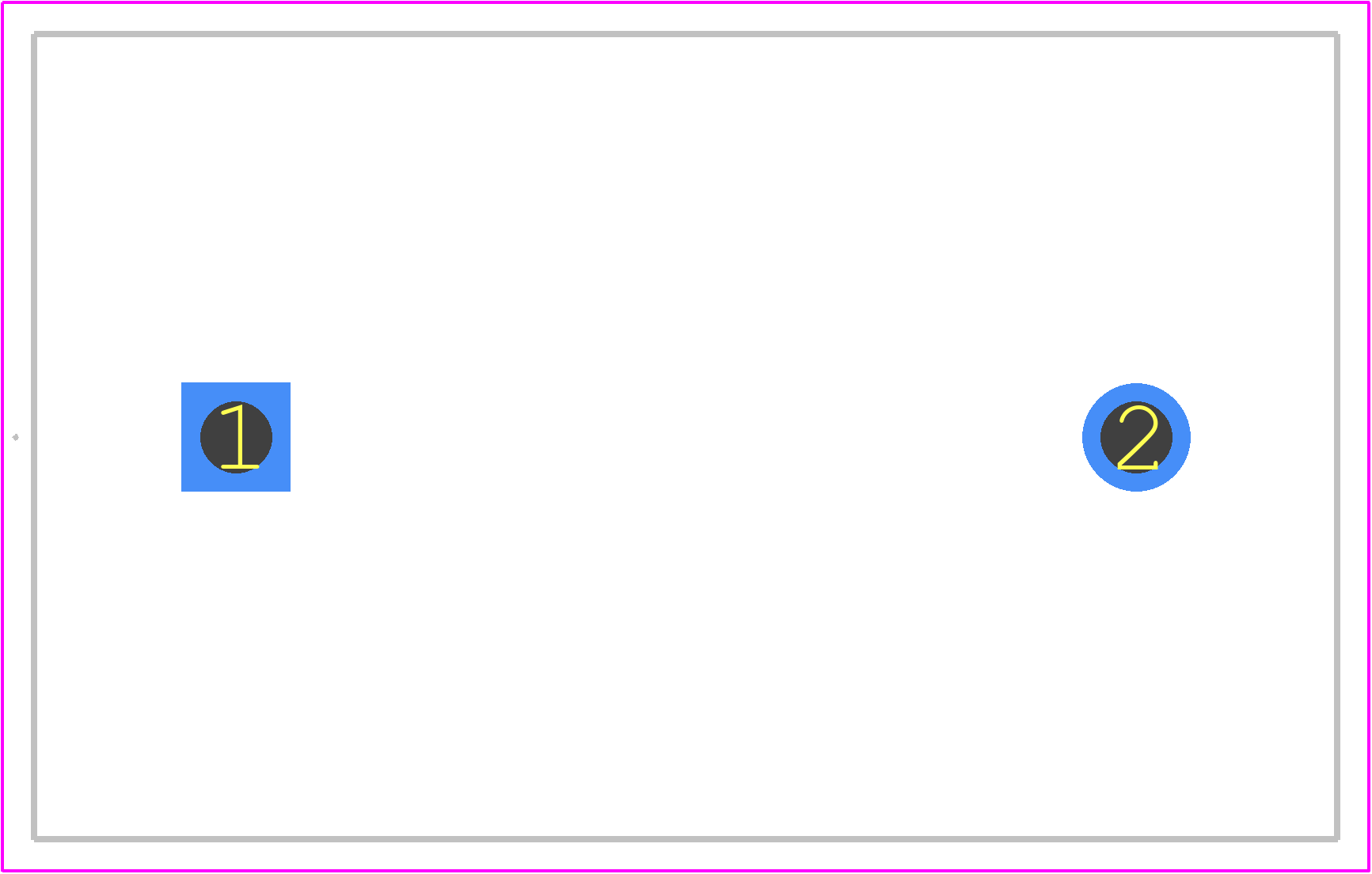

1538M24 - Hammond Canada PCB footprint - Other - Other - 25.40mm x 41.15mm
click to zoom
3D Models
1538M24 - Hammond Canada - 3D model - Other - 25.40mm x 41.15mm
click to zoom

1538M24 Details

  • Manufacturer Part Number:

    1538M24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    Canada

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    6.75

  • Construction:

    Tubular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.013 Ω

  • Inductance-Nom (L):

    50 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    2.03 mm

  • Lead Length:

    25.4 mm

  • Lead Spacing:

    28.45 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -60 °C

  • Package Length:

    41.15 mm

  • Package Style:

    Radial

  • Rated Current-Max:

    15 A

  • Self Resonance Frequency:

    3.5 MHz

  • Shape/Size Description:

    TUBULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

1538M24 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 1538M24 is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 1538M24 is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the enclosure to ensure optimal performance.
  • The 1538M24 has a rating of IP65, which means it provides protection against dust and water jets. However, it's not recommended for direct exposure to the elements or immersion in water. For outdoor use, consider adding additional protection such as a weatherproof coating or gasket.
  • Yes, Hammond Manufacturing offers customization options for the 1538M24, including custom holes and cutouts. Contact their sales team or a authorized distributor for more information and pricing.
  • The operating temperature range for the 1538M24 is -20°C to 80°C (-4°F to 176°F).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1538M24 Overview

Use the download button to access the 1538M24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1538M, or try a keyword search, such as Fixed Inductors
