154740-E - TE Connectivity

Description: PCB Mount Receptacle, Right Angle, Board-to-Board, 12 Position, 1.27 mm [.05 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI SMC

Download 154740-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

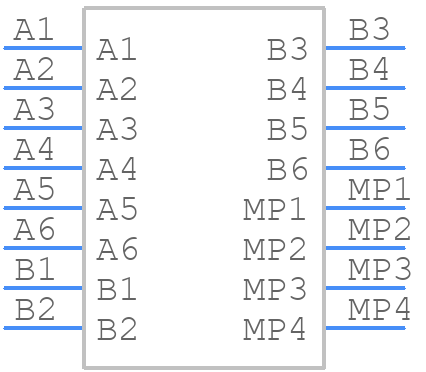

154740-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
154740-E - TE Connectivity PCB footprint - Other - Other - 154740-E-2
click to zoom
3D Models
154740-E - TE Connectivity - 3D model - Other - 154740-E-2
click to zoom

154740-E Details

  • Manufacturer Part Number:

    154740-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.4

  • Additional Feature:

    STANDARD: UL

  • Board Mounting Option:

    LOCATING POST

  • Body Breadth:

    0.378 inch

  • Body Depth:

    0.152 inch

  • Body Length:

    0.5 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    707VAC V

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.6A

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.27 mm

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1.6 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

154740-E Frequently Asked Questions (FAQs)

  • The recommended torque for mating and unmating the 154740-E connector is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the specific application requirements and TE Connectivity's guidelines for the specific connector variant.
  • Yes, the 154740-E connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with intense vibrations.
  • The 154740-E connector is designed to operate in a wide temperature range (-40°C to 125°C) and can withstand exposure to various chemicals, including fuels, oils, and cleaning agents. However, it's crucial to consult TE Connectivity's guidelines and perform necessary testing to ensure the connector meets the specific application requirements.
  • The 154740-E connector is rated for a minimum of 500 mating cycles, but this can vary depending on the specific application, usage, and environmental conditions. It's recommended to consult TE Connectivity's guidelines and perform testing to determine the connector's performance in the specific use case.
  • The 154740-E connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and backshells. However, compatibility with third-party components should be verified through testing and consultation with TE Connectivity's guidelines and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

154740-E Overview

Use the download button to access the 154740-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15474, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
