1551503 - Phoenix Contact

Description: SACC-DSI-FSD-4CON-L180 SCO - Device connector rear mounting, 4-position, Socket, straight, M12-SPEEDCON, D-coding, Wave soldering, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1551503 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1551503 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

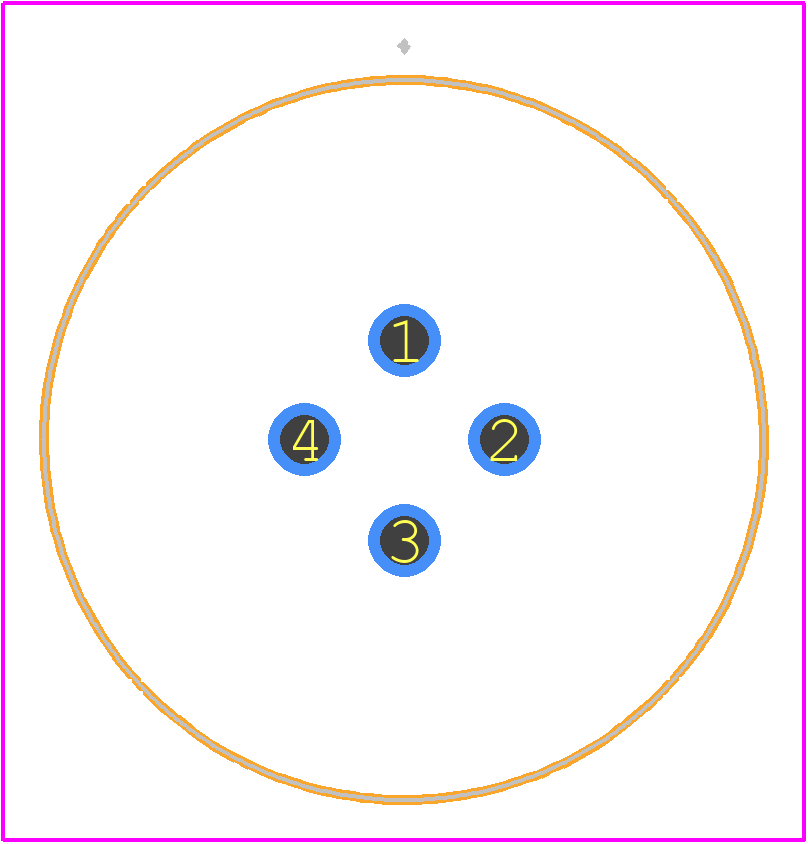

1551503 - Phoenix Contact PCB footprint - Other - Other - 1551503-1
click to zoom
3D Models
1551503 - Phoenix Contact - 3D model - Other - 1551503-1
click to zoom

1551503 Details

  • Manufacturer Part Number:

    1551503

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

1551503 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and manufacturer's recommendations for optimal results.
  • Yes, the 1551503 connector is designed to withstand vibrations and shocks, but it's crucial to ensure proper mounting and screwing to prevent damage or disconnection.
  • The 1551503 connector has a IP20 rating, which means it's protected against solid objects >12.5 mm, but it's not suitable for outdoor or harsh environmental use without additional protection or enclosures.
  • Yes, the 1551503 connector is designed to be compatible with other Phoenix Contact products, and it can be used with third-party components, but ensure compatibility and follow proper assembly and installation procedures.
  • The 1551503 connector has an operating temperature range of -40°C to 125°C, but it's essential to consider the specific application and environmental conditions to ensure optimal performance.
