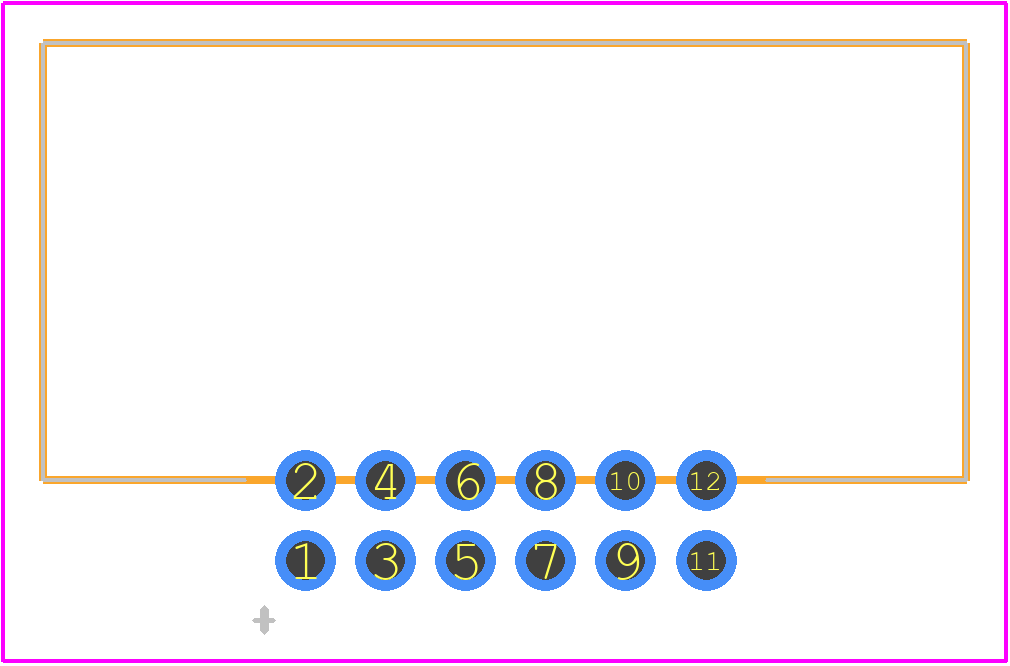

155212-5303-RB - 3M

155212-5303-RB Details

• Manufacturer Part Number:

  155212-5303-RB

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  13 Weeks, 4 Days

• Manufacturer:

  3M Interconnect

• YTEOL:

  8

• Body Breadth:

  0.247 inch

• Body Depth:

  0.51 inch

• Body Length:

  0.91 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Matte Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  707VAC V

• Durability:

  50 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  1.1 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYESTER/LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.078 inch

• Mating Contact Row Spacing:

  0.079 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LATCH & EJECT

• Mounting Option 2:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  4.75 A

• Reference Standard:

  CUL, UL

• Terminal Length:

  0.155 inch

• Terminal Pitch:

  2 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  12

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.3 N
