1557581 - Phoenix Contact

Description: SACC-CI-M12MS-8CON-L180-THR SH - Contact carrier, 8-position, Pin, straight, M12, A-coding, THR solder connection, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Download 1557581 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1557581 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

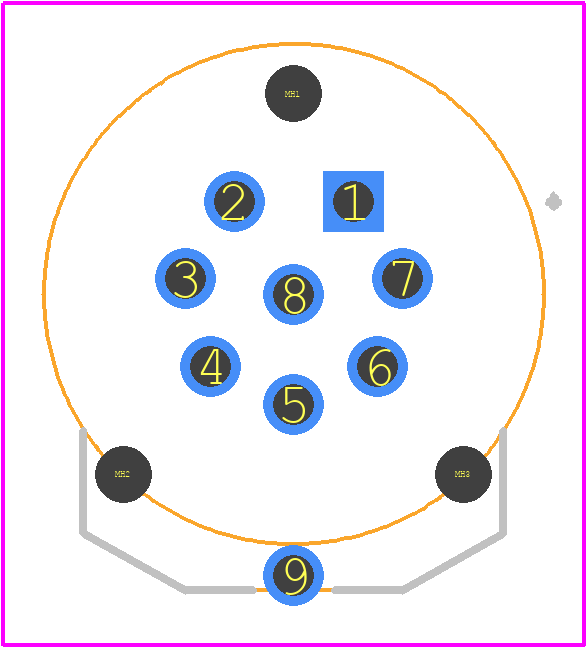

1557581 - Phoenix Contact PCB footprint - Other - Other - 1557581
click to zoom
3D Models
1557581 - Phoenix Contact - 3D model - Other - 1557581
click to zoom

1557581 Details

  • Manufacturer Part Number:

    1557581

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    SHIELDED

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

1557581 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1557581 connector is designed to withstand vibrations up to 10g according to IEC 61373. However, it's recommended to perform additional testing for specific vibration profiles.
  • The 1557581 connector is rated for operating temperatures from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consider the specific environmental conditions and potential derating factors.
  • The 1557581 connector is rated for currents up to 12 A per contact. However, it's crucial to consider the specific application, wire gauge, and potential derating factors to ensure safe and reliable operation.
  • Yes, Phoenix Contact provides guidelines for PCB layout and footprint design in their documentation. It's essential to follow these recommendations to ensure reliable connection and prevent damage to the connector or PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1557581 Overview

Use the download button to access the 1557581 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15575, or try a keyword search, such as Other Circular Connectors
