1558660-3 - TE Connectivity

Description: Power Relay SPST-CO 250VAC 12VDC PC Pins Thru-Hole

Download 1558660-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1558660-3 - TE Connectivity - PCB symbol
click to zoom

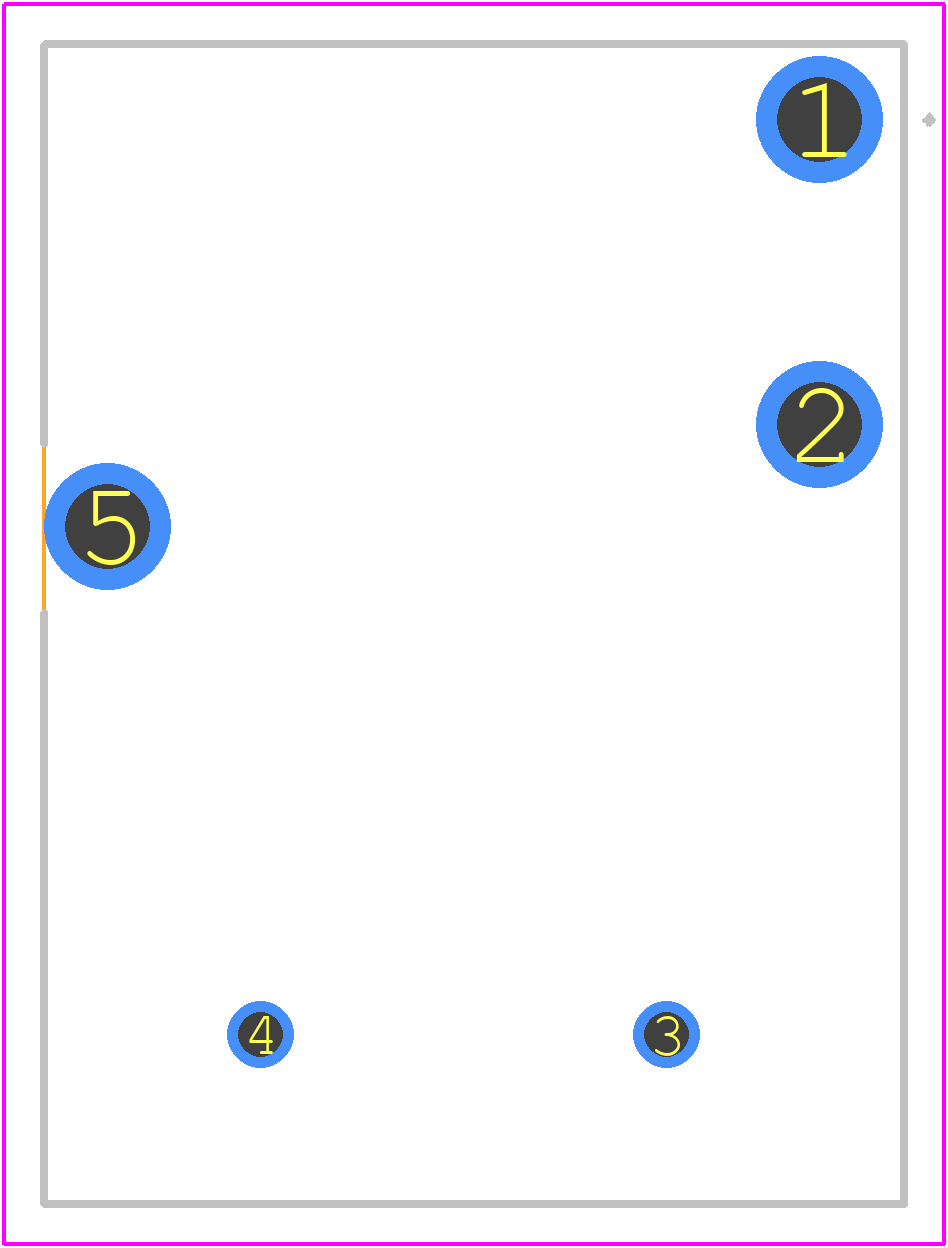

PCB Footprints
1558660-3 - TE Connectivity PCB footprint - Other - Other - 1558660-3-7
click to zoom
3D Models
1558660-3 - TE Connectivity - 3D model - Other - 1558660-3-7
click to zoom

1558660-3 Details

  • Manufacturer Part Number:

    1558660-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    64 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5

  • Body Breadth:

    21.5 mm

  • Body Height:

    15.7 mm

  • Body Length or Diameter:

    29 mm

  • Coil Power:

    900 mW

  • Coil Resistance:

    160 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Contact Current(AC)-Max:

    20 A

  • Contact Current(DC)-Max:

    20 A

  • Contact Voltage(AC)-Max:

    480 V

  • Dielectric Strength Between Coil and Contacts:

    4000 Vrms

  • Dielectric Strength Between Open Contacts:

    1500 Vrms

  • End Contact Material:

    SILVER TIN ALLOY

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    29 X 21.5 X 15.7

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM C

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    18 g

1558660-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 1558660-3 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
  • The 1558660-3 connector is designed to operate in harsh environments. It has a temperature range of -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance.
  • The 1558660-3 connector has a mating cycle life of 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the 1558660-3 connector is part of the TE Connectivity's modular connector system. It's designed to be compatible with other TE Connectivity products, such as backshells, contacts, and cable assemblies, allowing for flexible and customizable solutions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1558660-3 Overview

Use the download button to access the 1558660-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15586, or try a keyword search, such as Power/Signal Relays
