1558661-1 - TE Connectivity

Description: Power Relays, Standard, Monostable, DC, 900 mW Coil Power Rating DC, 28 Ω Coil Resistance, UL Coil Insulation Class F, Potter & Brumfield T9G

Download 1558661-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1558661-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

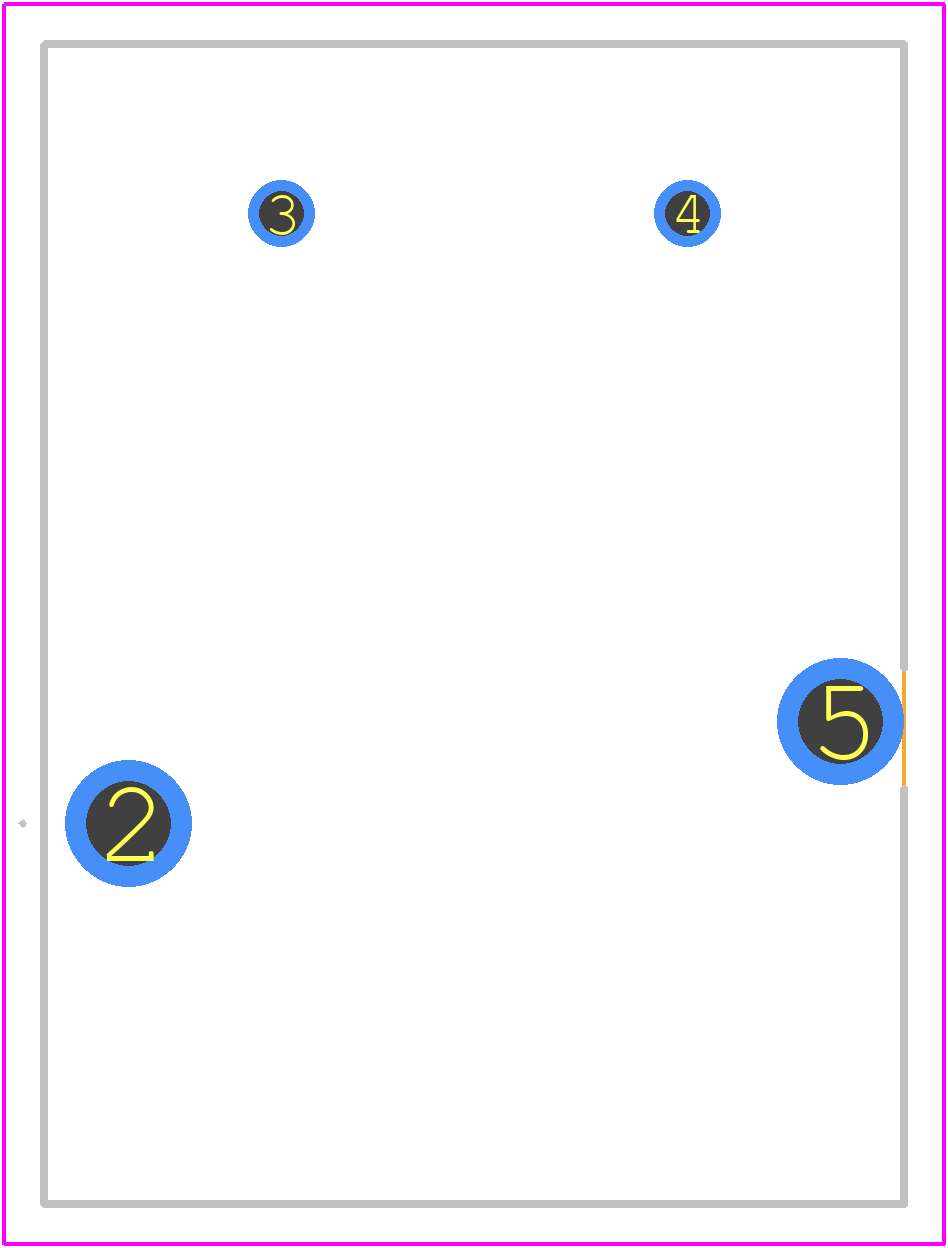

1558661-1 - TE Connectivity PCB footprint - Other - Other - 1558661-1-12
click to zoom
3D Models
1558661-1 - TE Connectivity - 3D model - Other - 1558661-1-12
click to zoom

1558661-1 Details

  • Manufacturer Part Number:

    1558661-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.45

  • Body Breadth:

    21.5 mm

  • Body Height:

    15.7 mm

  • Body Length or Diameter:

    29 mm

  • Coil Power:

    900 mW

  • Coil Resistance:

    28 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Contact Current(AC)-Max:

    30 A

  • Contact Current(DC)-Max:

    30 A

  • Contact Voltage(AC)-Max:

    480 V

  • Dielectric Strength Between Coil and Contacts:

    4000 Vrms

  • Dielectric Strength Between Open Contacts:

    1500 Vrms

  • End Contact Material:

    SILVER TIN ALLOY

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    29 X 21.5 X 15.7

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM A

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    18 g

1558661-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 1558661-1 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 61373 Cat. 2. However, it's recommended to consult with TE Connectivity or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • The operating temperature range for the 1558661-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector operates within this range to maintain its performance and reliability.
  • The 1558661-1 connector has a IP67 rating, which means it can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's not designed for exposure to harsh chemicals. Consult with TE Connectivity or a qualified engineer to determine the connector's suitability for your specific environment.
  • The 1558661-1 connector has a mating cycle life of 500 cycles minimum. This means it can withstand at least 500 connect and disconnect cycles without compromising its performance or reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1558661-1 Overview

Use the download button to access the 1558661-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15586, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
