1558661-3 - TE Connectivity

Description: Power Relays, Standard, Monostable, DC, 900 mW Coil Power Rating DC, 160 Ω Coil Resistance, UL Coil Insulation Class F, Potter & Brumfield T9G

Download 1558661-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1558661-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

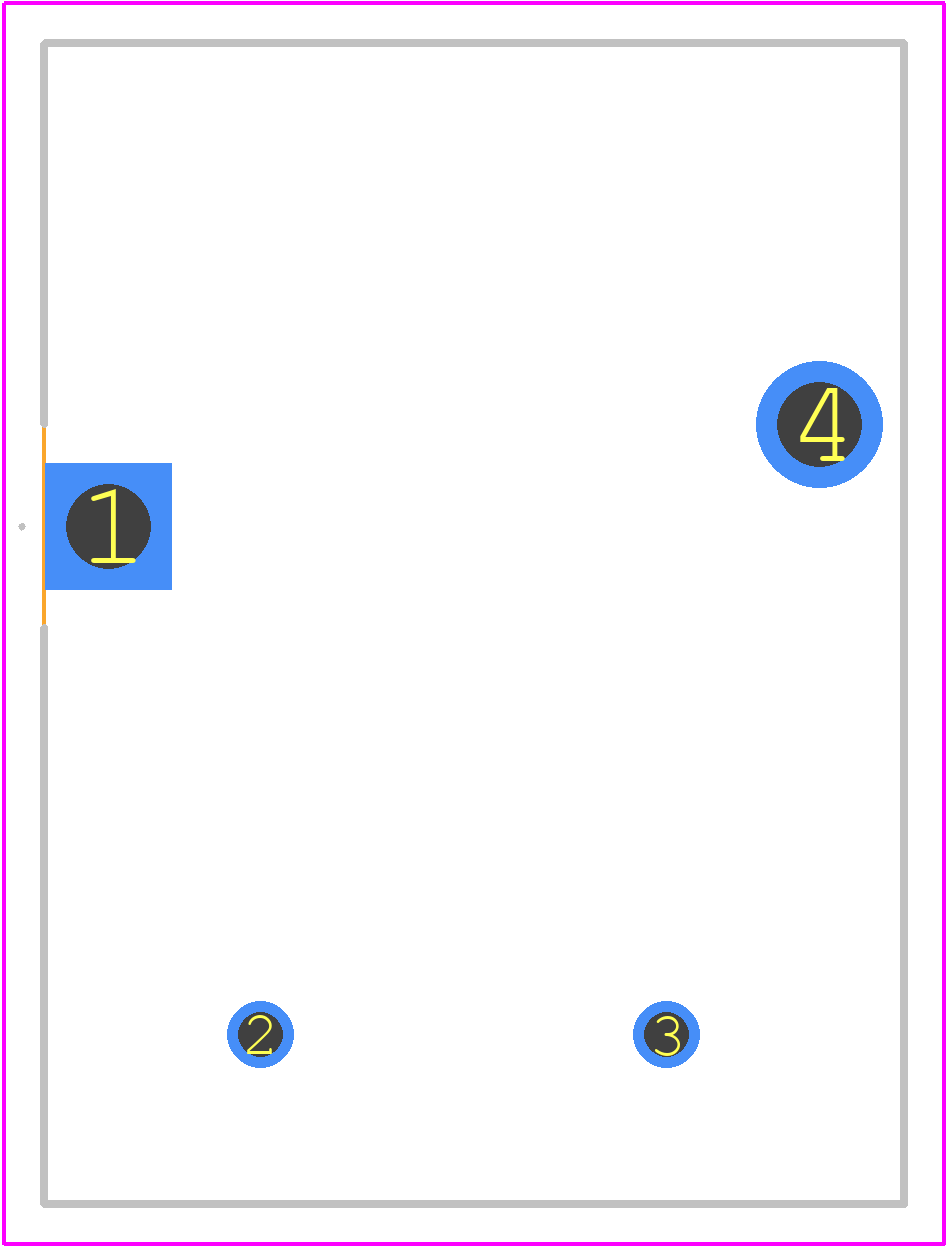

1558661-3 - TE Connectivity PCB footprint - Other - Other - 1558661-3-6
click to zoom
3D Models
1558661-3 - TE Connectivity - 3D model - Other - 1558661-3-6
click to zoom

1558661-3 Details

  • Manufacturer Part Number:

    1558661-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5

  • Body Breadth:

    21.5 mm

  • Body Height:

    15.7 mm

  • Body Length or Diameter:

    29 mm

  • Coil Power:

    900 mW

  • Coil Resistance:

    160 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Contact Current(AC)-Max:

    30 A

  • Contact Current(DC)-Max:

    30 A

  • Contact Voltage(AC)-Max:

    480 V

  • Dielectric Strength Between Coil and Contacts:

    4000 Vrms

  • Dielectric Strength Between Open Contacts:

    1500 Vrms

  • End Contact Material:

    SILVER TIN ALLOY

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    29 X 21.5 X 15.7

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM A

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    18 g
