1559945 - Phoenix Contact

Description: SACC-DSI-MS-12CON-M12 SCO - Device connector rear mounting, 12-position, Pin, straight, M12-SPEEDCON, A-coding, Wave soldering, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance

Download 1559945 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1559945 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

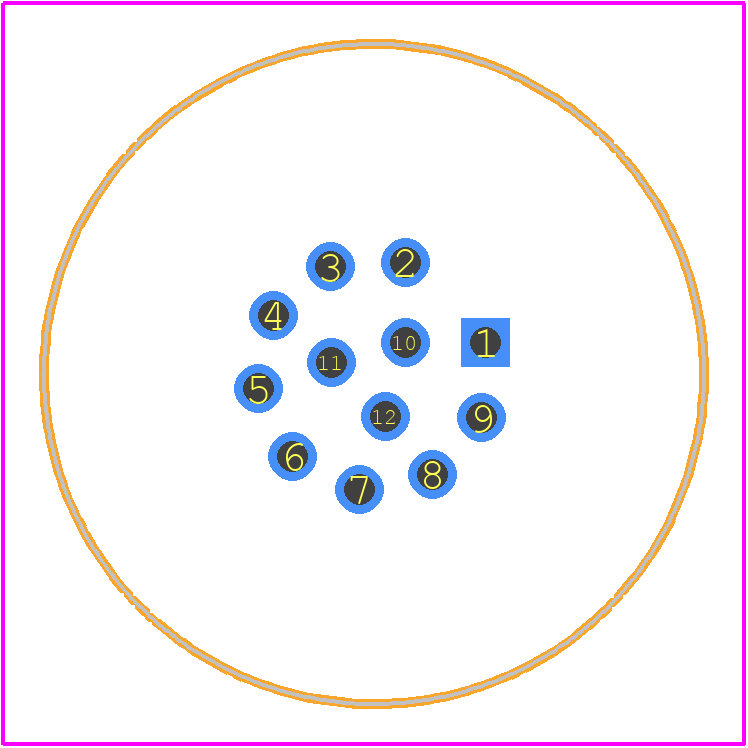

1559945 - Phoenix Contact PCB footprint - Other - Other - 1559945-4
click to zoom
3D Models
1559945 - Phoenix Contact - 3D model - Other - 1559945-4
click to zoom

1559945 Details

  • Manufacturer Part Number:

    1559945

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    PLUG

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

1559945 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.4 Nm to 0.6 Nm, as specified in the Phoenix Contact's general technical guidelines.
  • Yes, the 1559945 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • Yes, the 1559945 connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH, making it suitable for use in harsh environments.
  • No, the 1559945 connector is designed for use with wire gauges AWG 24 to AWG 30. Using a larger wire gauge may compromise the connector's performance and reliability.
  • Yes, the 1559945 connector is designed for automated assembly and can be used with standard pick-and-place machines and reflow soldering processes.
