15650122701000 - HARTING

Description: Connectors, Female connector, Reflow soldering termination (THR), Rated current: ?29 A, Contacts: 12, Angled, Copper alloy, Noble metal over Ni, Mating side, Sn over Ni, Termination side, Performance level: 1, Liquid crystal polymer (LCP), Black

Download 15650122701000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

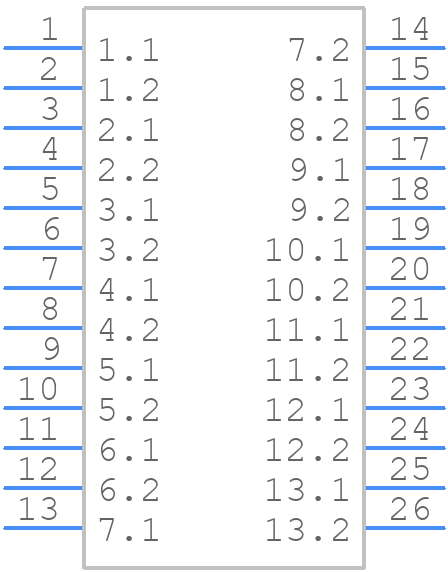

15650122701000 - HARTING - PCB symbol
click to zoom
PCB Footprints

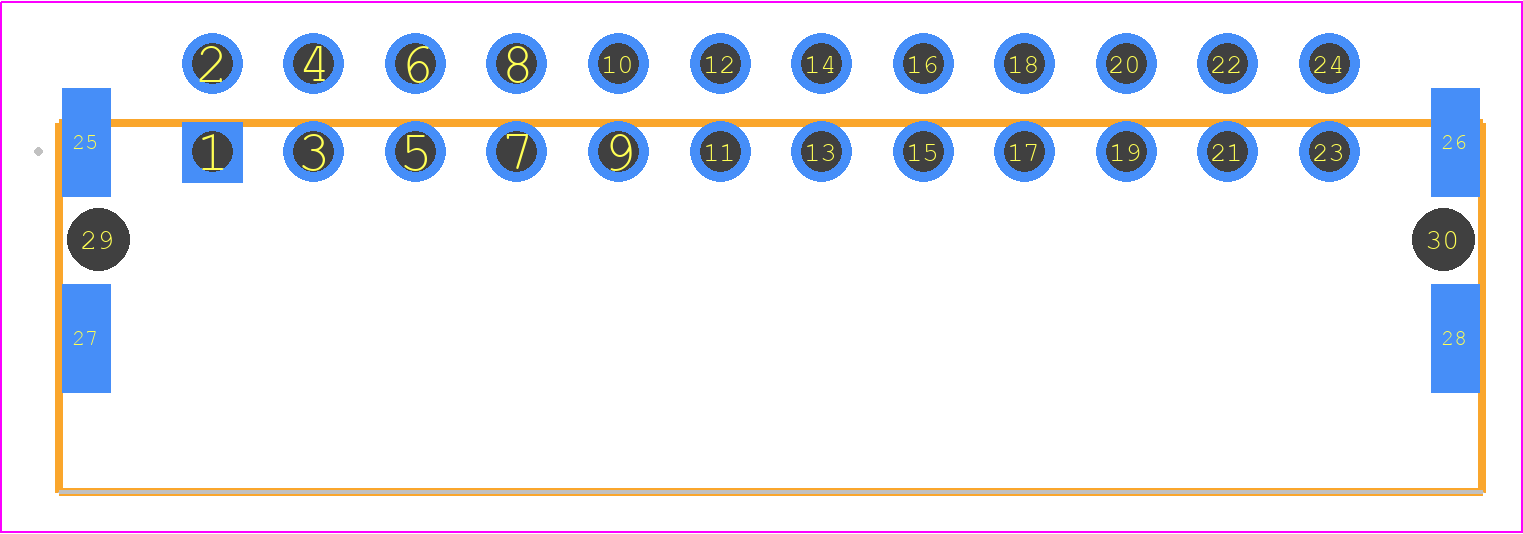

15650122701000 - HARTING PCB footprint - Other - Other - 15650122701000
click to zoom
3D Models
15650122701000 - HARTING - 3D model - Other - 15650122701000
click to zoom

15650122701000 Details

  • Manufacturer Part Number:

    15650122701000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

15650122701000 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 15650122701000 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • The maximum operating temperature range for this connector is -40°C to +125°C, making it suitable for use in a wide range of industrial and commercial applications.
  • Yes, the 15650122701000 connector is designed to be compatible with other HARTING products, including cables, adapters, and connectors, ensuring seamless integration and compatibility.
  • The 15650122701000 connector has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

15650122701000 Overview

Use the download button to access the 15650122701000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15650, or try a keyword search, such as Power Connectors
