1565371-3 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Signal Positions 26 | Number of Positions 26 | Number of Rows 2 | PCB Mount Orientation Vertical | Number of Sections 1 | Contact Features: Mating Tab Width .64 MM | Mating Tab Width .091 INCH | Mating Tab Width .025 INCH | Contact Type Tab | Contact Size 2.28mm | Mating Tab Thickness .025 INCH | Mating Tab Width 2.3 MM | Contact Size .63mm | Contact Mating Area Plating Material Tin | Mating Tab Thickness .64 MM | Dimensions: C

Download 1565371-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1565371-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

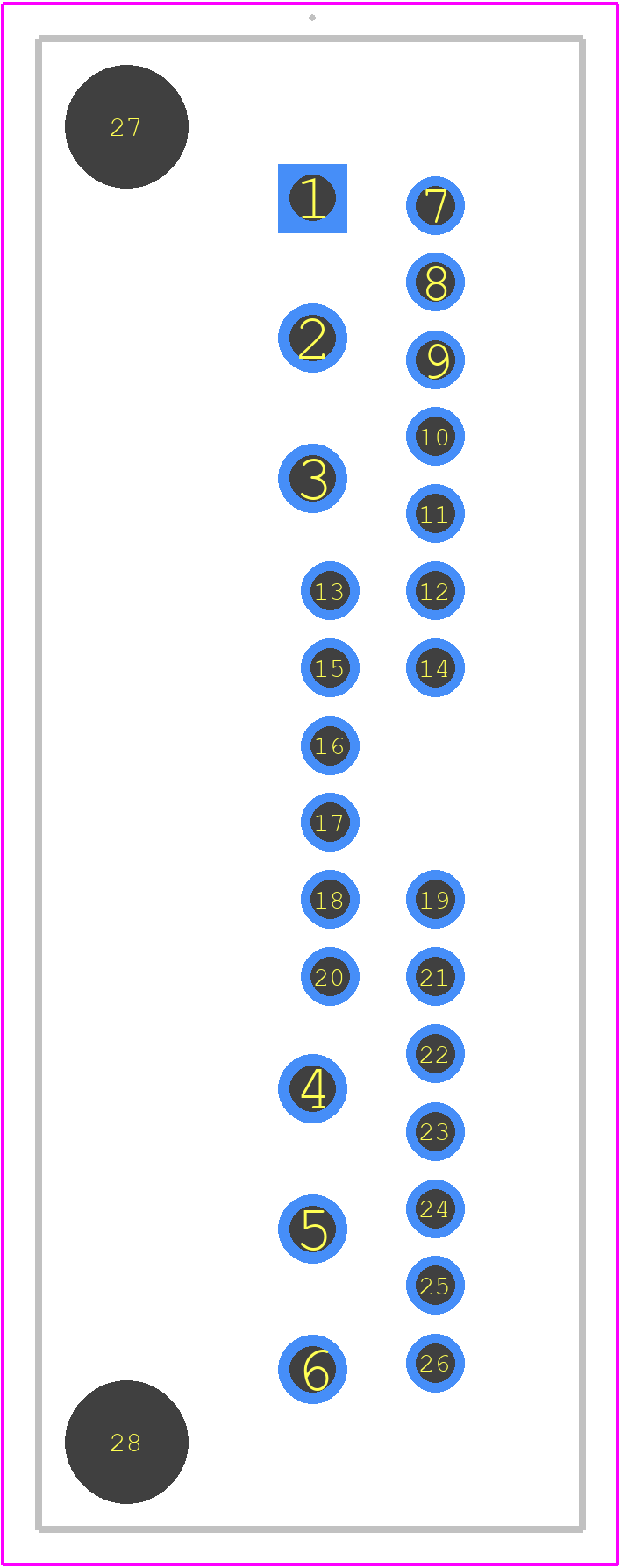

1565371-3 - TE Connectivity PCB footprint - Other - Other - 1565371-3-1
click to zoom
3D Models
1565371-3 - TE Connectivity - 3D model - Other - 1565371-3-1
click to zoom

1565371-3 Details

  • Manufacturer Part Number:

    1565371-3

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.61 inch

  • Body Depth:

    1.02 inch

  • Body Length:

    1.673 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94-HB

1565371-3 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 1565371-3 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1565371-3 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • While it's technically possible to use a different wire gauge, it's not recommended. The connector is designed to work optimally with the recommended wire gauge (22-18 AWG). Using a different gauge may compromise the connector's performance and reliability.
  • Yes, the 1565371-3 connector is designed to be compatible with other TE Connectivity products, such as their wire and cable assemblies. However, it's essential to verify compatibility and consult TE Connectivity's documentation and technical support for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1565371-3 Overview

Use the download button to access the 1565371-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15653, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
