1565373-7 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Sections 1 | PCB Mount Orientation Right Angle | Number of Signal Positions 28 | Number of Positions 28 | Number of Rows 2 | Contact Features: Mating Tab Thickness .025 INCH | Contact Mating Area Plating Material Tin (Sn) | Contact Type Pin | Mating Tab Width .64 MM | Mating Tab Width .025 INCH | Mating Tab Thickness .64 MM | Contact Type Tab | Dimensions: PCB Thickness (Recommended) 1.2 – 1.6 MM | Connector Width 36.2 MM | C

Download 1565373-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

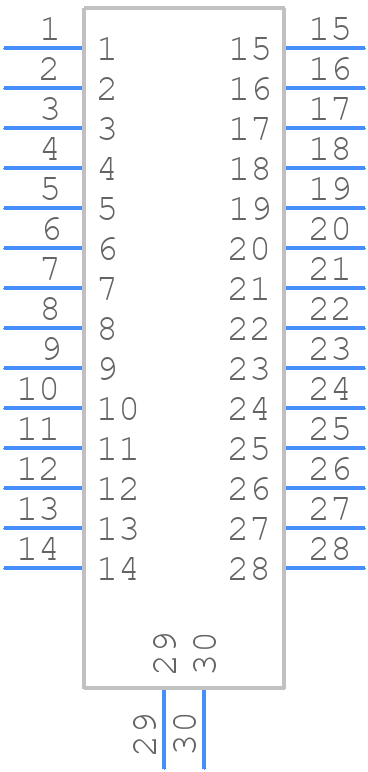

1565373-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

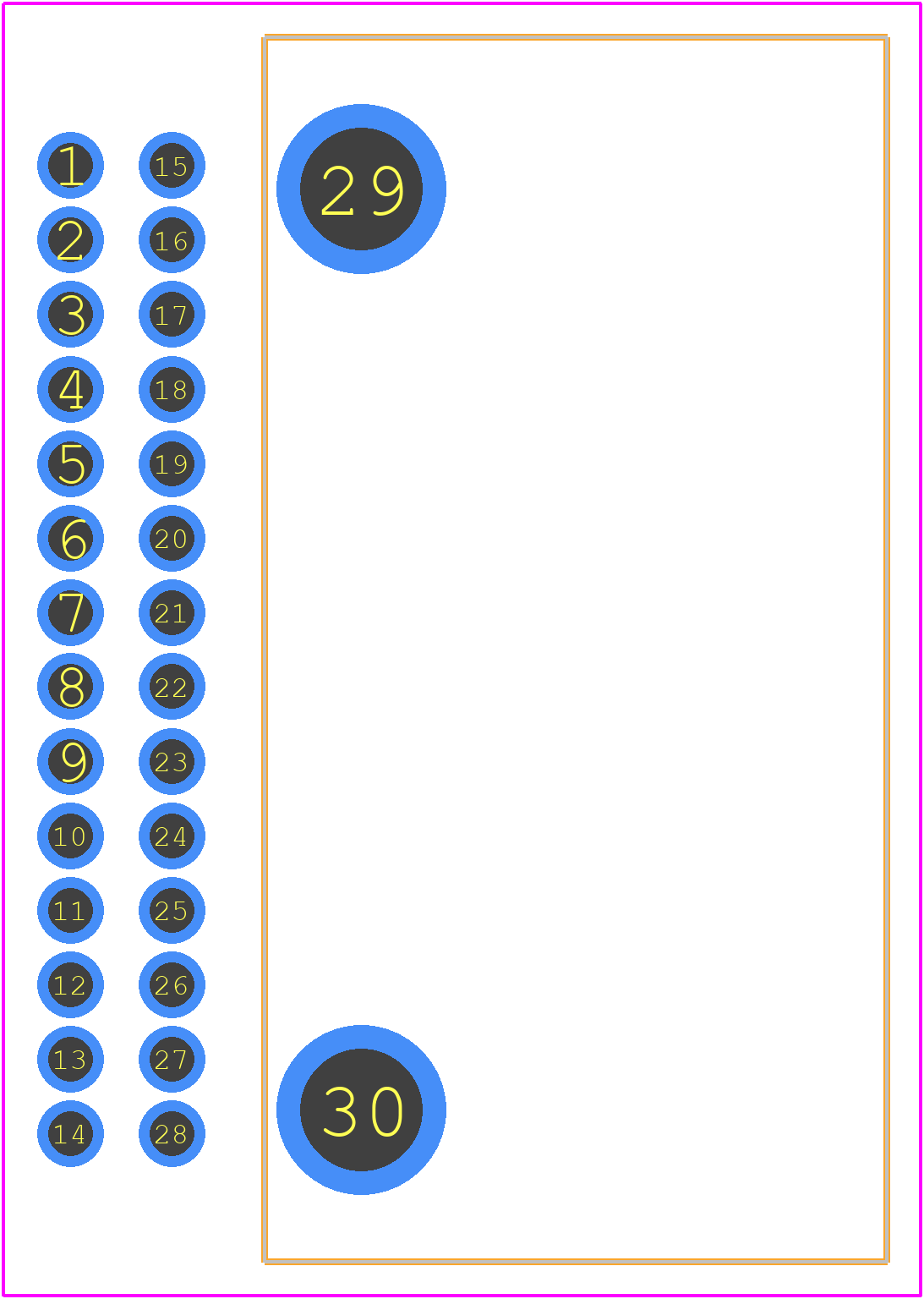

1565373-7 - TE Connectivity PCB footprint - Other - Other - 1565373-7-4
click to zoom
3D Models
1565373-7 - TE Connectivity - 3D model - Other - 1565373-7-4
click to zoom

1565373-7 Details

  • Manufacturer Part Number:

    1565373-7

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Body Breadth:

    0.61 inch

  • Body Depth:

    0.963 inch

  • Body Length:

    1.425 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    GLASS FILLED SYNDIOTACTIC POLYSTYRENE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    28

1565373-7 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1565373-7 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 1565373-7 connector has a rating of IP67, which means it provides protection against dust and water ingress. However, it's essential to ensure the connector is properly sealed and installed to maintain its environmental rating. Additionally, consider using additional protection measures, such as conformal coating or potting, for extreme outdoor environments.
  • The 1565373-7 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the temperature rating of the specific application and ensure the connector is used within its recommended operating temperature range.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 1565373-7 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and to follow proper wire stripping and termination procedures to prevent damage to the connector or wire.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1565373-7 Overview

Use the download button to access the 1565373-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15653, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
