- Part Number 1565526
- Manufacturer Multicomp Pro
- Pin Count 26
- Part Category Connector
- Package Category Header, Shrouded - Straight PTH Box

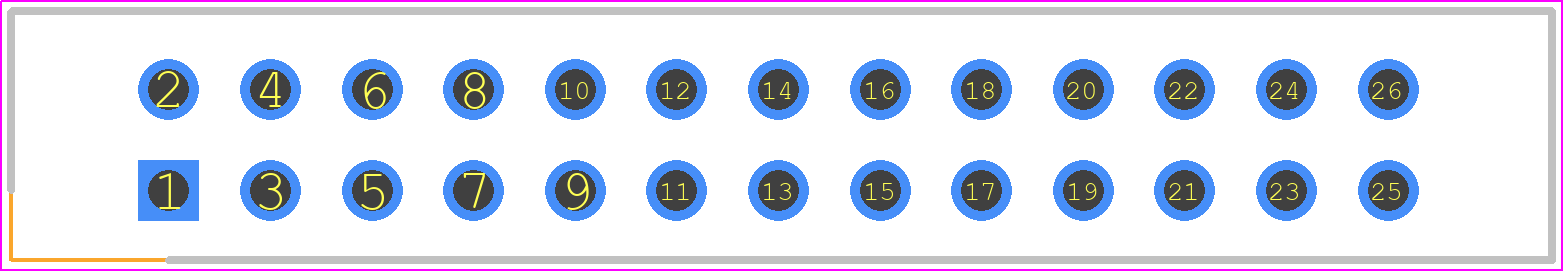

- Footprint Name Header, Shrouded - Straight PTH Box - 1565526-1
- Released Date Dec 11, 2018
- Last Modified Date Jan 16, 2024 1:36 PM UTC
- Pinout / Pin List Click Here (Member Only)
1565526 Details
-
Manufacturer Part Number:
1565526
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
SPC Multicomp
-
YTEOL:
9.1
-
Body Breadth:
0.22 inch
-
Body Depth:
0.163 inch
-
Body Length:
1.461 inch
-
Body/Shell Style:
PLUG
