1565542-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Sections 1 | Number of Signal Positions 8 | Number of Positions 8 | PCB Mount Orientation Vertical | Number of Rows 2 | Contact Features: Contact Type Tab | Mating Tab Width 1 MM | Contact Size 1mm | Mating Tab Thickness .025 INCH | Contact Mating Area Plating Material Tin | Mating Tab Thickness .64 MM | Mating Tab Width .039 INCH | Dimensions: Connector Width .555 INCH | Profile Height from PCB 20.7 MM | PCB Thickness (Recommend

Download 1565542-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1565542-1 - TE Connectivity - PCB symbol
click to zoom

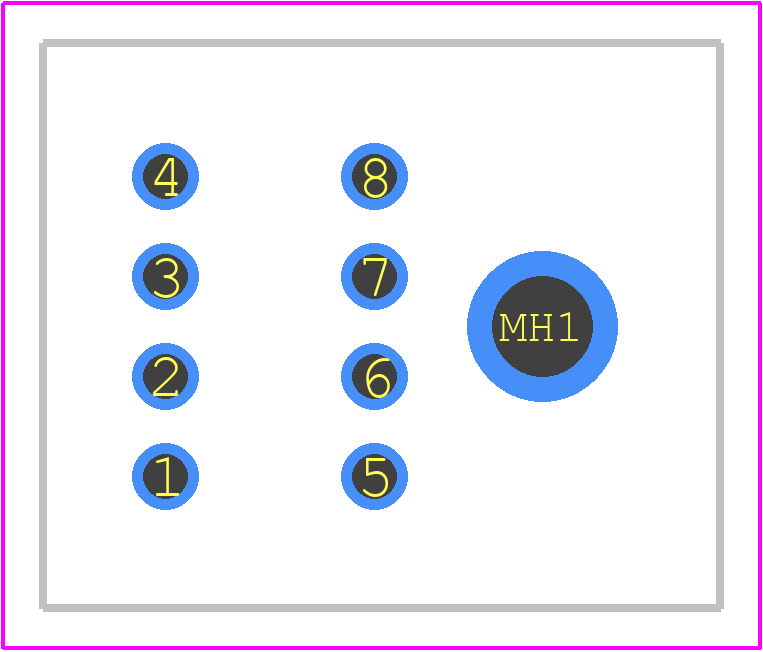

PCB Footprints
1565542-1 - TE Connectivity PCB footprint - Other - Other - 1565542-1-1
click to zoom
3D Models
1565542-1 - TE Connectivity - 3D model - Other - 1565542-1-1
click to zoom

1565542-1 Details

  • Manufacturer Part Number:

    1565542-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Body Breadth:

    0.555 inch

  • Body Depth:

    0.815 inch

  • Body Length:

    0.665 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94-HB

1565542-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1565542-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as industrial control systems, transportation, and more.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
  • The 1565542-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial control systems to automotive and aerospace.
  • Yes, it's essential to follow proper cleaning and maintenance procedures to ensure the reliability and performance of the connector. TE Connectivity recommends using a soft brush and a mild detergent solution to clean the connector. Avoid using harsh chemicals or abrasive materials that can damage the connector's surface.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1565542-1 Overview

Use the download button to access the 1565542-1 schematic symbol, PCB footprint, and 3D model.
