Part Image

1565691-1 - TE Connectivity

Description: Body Features: Ejector Location Both Ends | Module Key Type SGRAM | Connector Profile Low | Latch Material Stainless Steel | Ejector Type Locking | Configuration Features: Number of Keys 1 | Number of Rows 2 | Number of Positions 200 | Module Orientation Right Angle | Number of Bays 2 | Contact Features: Contact Base Material Copper Alloy | Contact Mating Area Plating Material Gold Flash | Contact Current Rating (Max) .5 AMP | PCB Contact Termination Area Plating Material Gold Flash | Memory Socket Type Mem

Download 1565691-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1565691-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

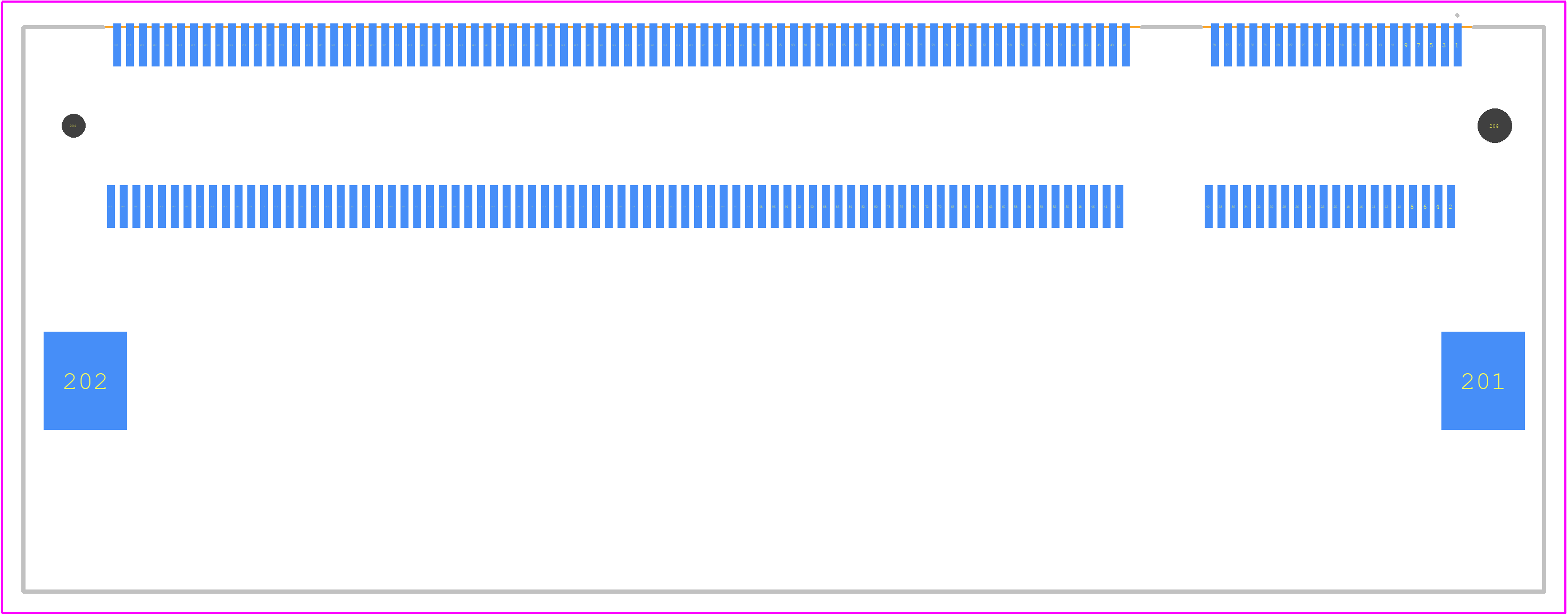

1565691-1 - TE Connectivity PCB footprint - Other - Other - 1565691-1-4
click to zoom
3D Models
1565691-1 - TE Connectivity - 3D model - Other - 1565691-1-4
click to zoom

1565691-1 Details

  • Manufacturer Part Number:

    1565691-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    LOW PROFILE

  • Board Mounting Option:

    PEG

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    .5A

  • Mating Contact Row Spacing:

    0.22 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.6 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    200

  • UL Flammability Code:

    94V-0

1565691-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 1565691-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1565691-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 1565691-1 connector has a sealed design, making it suitable for outdoor or harsh environmental applications. However, it's crucial to ensure proper sealing and protection from moisture, dust, and other environmental factors.
  • The 1565691-1 connector is designed for specific wire gauges and types. Consult TE Connectivity's documentation or contact their support to determine the compatibility of the connector with your specific wire requirements.
