1565749-1 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Connector & Keying Code 1 | Configuration Features: Number of Sections 1 | Number of Signal Positions 4 | Number of Rows 1 | Number of Positions 4 | PCB Mount Orientation Horizontal | Contact Features: Contact Mating Area Plating Material Tin | Mating Tab Thickness .025 INCH | Contact Type Tab | Contact Size .63mm | Mating Tab Width .64 MM | Mating Tab Width .025 INCH | Mating Tab Thickness .64 MM | Dimensions: Connector Width 14 MM | Connector Length 21.97 MM

Download 1565749-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1565749-1 - TE Connectivity - PCB symbol
click to zoom

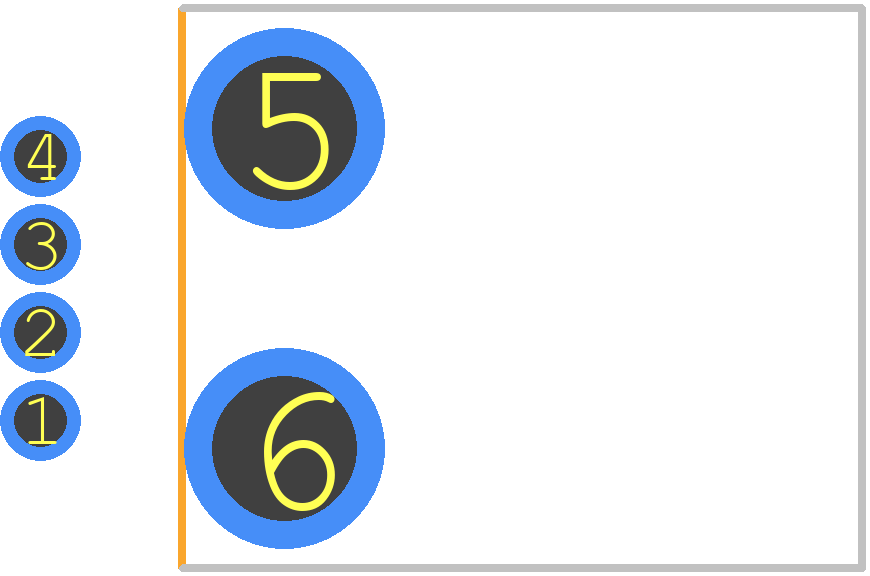

PCB Footprints
1565749-1 - TE Connectivity PCB footprint - Other - Other - 1565749-1
click to zoom
3D Models
1565749-1 - TE Connectivity - 3D model - Other - 1565749-1
click to zoom

1565749-1 Details

  • Manufacturer Part Number:

    1565749-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.878 inch

  • Body Depth:

    1.594 inch

  • Body Length:

    3.433 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    1473672-1

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

1565749-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure reliable connections.
  • Yes, the 1565749-1 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's crucial to ensure proper mounting and secure fastening to prevent connector damage or disconnection.
  • The 1565749-1 connector is designed to operate in a wide temperature range (-40°C to 125°C) and is suitable for use in harsh environments. However, it's essential to consider the specific application requirements and ensure the connector is properly sealed and protected from environmental factors.
  • The maximum current rating for the 1565749-1 connector is 3A per contact. However, it's essential to consider the specific application requirements and ensure the connector is used within the recommended current rating to prevent overheating or damage.
  • The 1565749-1 connector is designed to operate in high-temperature applications up to 125°C. However, it's essential to consider the specific application requirements and ensure the connector is used within the recommended temperature range to prevent damage or degradation.
