Part Image

1569626 - Phoenix Contact

Description: FP 0,8/ 32-MV-SL 8,65 - SMD male connector, nominal current: 1.7 A, test voltage: 500 V AC, number of positions: 32, pitch: 0.8 mm, color: black, contact surface: Au, contact connection type: Pin, mounting: SMD soldering

Download 1569626 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

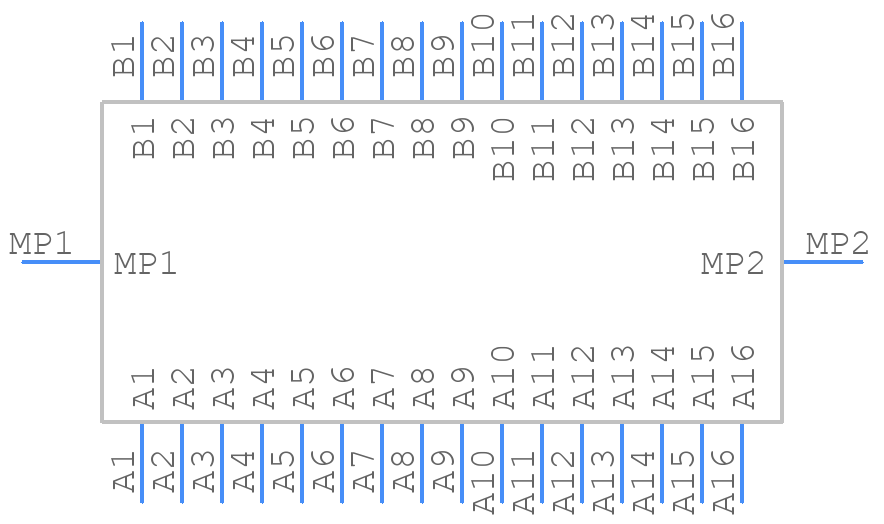

1569626 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints
1569626 - Phoenix Contact PCB footprint - Other - Other - 1569626-1
click to zoom
3D Models
1569626 - Phoenix Contact - 3D model - Other - 1569626-1
click to zoom

1569626 Details

  • Manufacturer Part Number:

    1569626

  • Manufacturer:

    Phoenix Contact

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1569626 Overview

Use the download button to access the 1569626 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 15696, or try a keyword search, such as Wires and Cables

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
